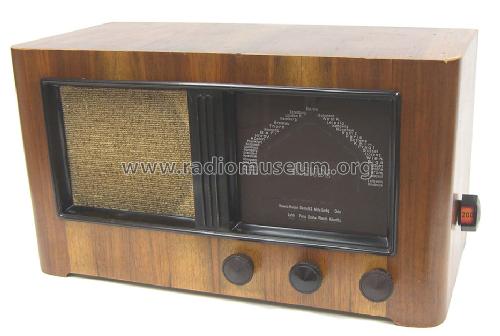

Mende - Radio H.: 147B [Radio] ID = 1787015 1400x804
Select picture or schematic to display from thumbnails on the right and click for download.
For model 147B, Mende - Radio H. Mende & Co. GmbH, Dresden

Country:  Germany
Manufacturer / Brand:  Mende - Radio H. Mende & Co. GmbH, Dresden
Brand

System Günther
Year: 1937–1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: KF4 KC1_p8 KL2
Main principle TRF with regeneration; 2 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries / 100 / 2 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 147B - Mende - Radio H. Mende & Co.
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 534 x 295 x 260 mm / 21 x 11.6 x 10.2 inch
Net weight (2.2 lb = 1 kg) 9.5 kg / 20 lb 14.8 oz (20.925 lb)
Price in first year of sale 134.00 RM
Source of data Handbuch WDRG 1937 / Radiokatalog Band 1, Ernst Erb

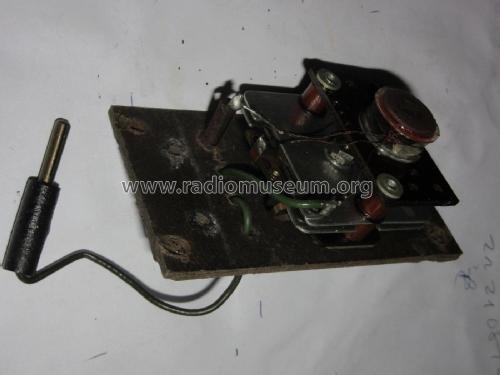

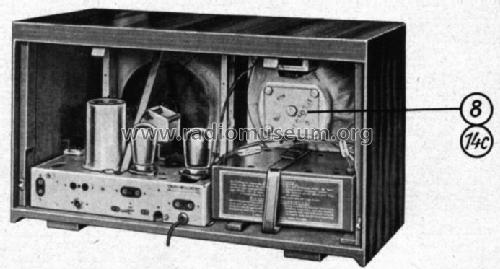

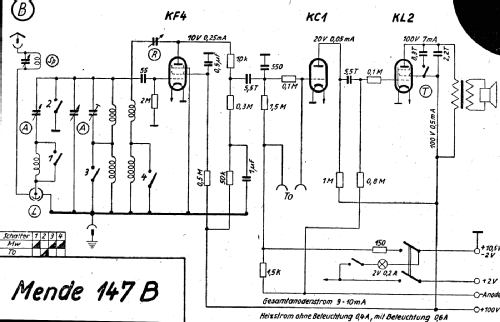

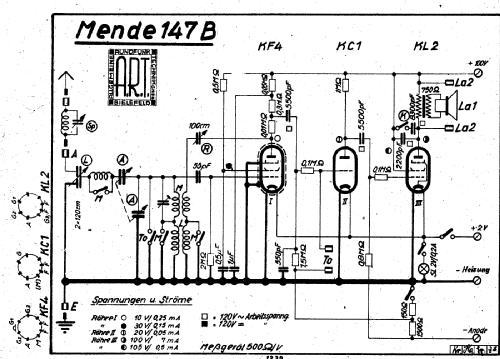

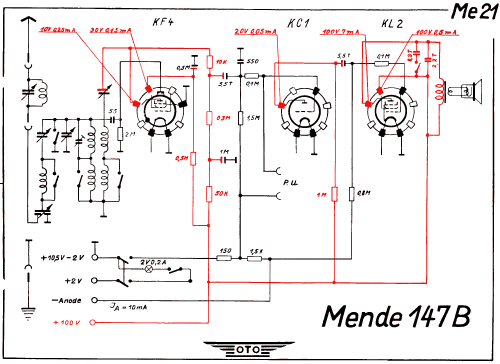

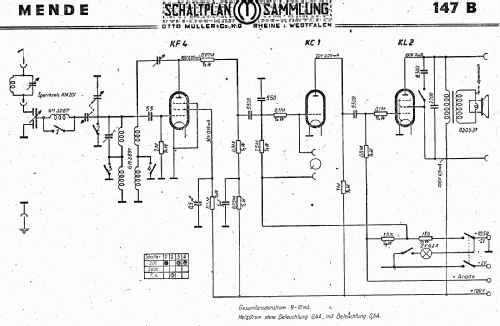

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
