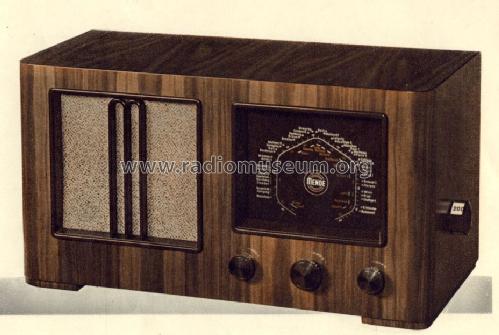

151BL; Mende - Radio H. (ID = 1425750) Radio
Mende - Radio H.: 151BL [Radio] ID = 1425750 930x624
Select picture or schematic to display from thumbnails on the right and click for download.
For model 151BL, Mende - Radio H. Mende & Co. GmbH, Dresden:
Nordmende Prospekt 'W152 GXXX rlt.'

Country:  Germany
Manufacturer / Brand:  Mende - Radio H. Mende & Co. GmbH, Dresden
Brand

System Günther
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: KF4 KC1_p8 KL2
Main principle TRF with regeneration; 2 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries / 100 / 2 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 151BL - Mende - Radio H. Mende & Co.
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 530 x 285 x 260 mm / 20.9 x 11.2 x 10.2 inch
Notes Polygon-Skala Polygon-Skala.
Net weight (2.2 lb = 1 kg) 13 kg / 28 lb 10.1 oz (28.634 lb)
Price in first year of sale 138.00 RM
Source of data HandB.d.d.Rundfunk-Handels 1936/37 / Radiokatalog Band 1, Ernst Erb

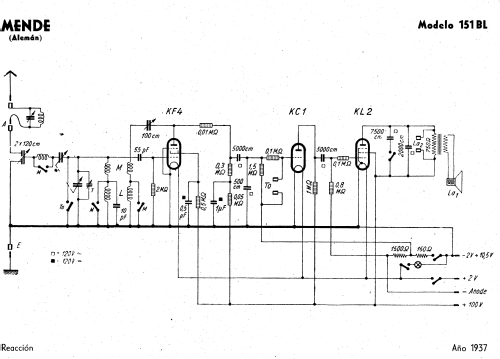

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung


All listed radios etc. from Mende - Radio H. Mende & Co. GmbH, Dresden
Here you find 310 models, 280 with images and 202 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
