M156 (156G) Bakelit

M156 ; Mende - Radio H. (ID = 178710) Radio

M156 ; Mende - Radio H. (ID = 178704) Radio

M156 ; Mende - Radio H. (ID = 178707) Radio

M156 ; Mende - Radio H. (ID = 178709) Radio

M156 ; Mende - Radio H. (ID = 178708) Radio

M156 ; Mende - Radio H. (ID = 178705) Radio

M156 ; Mende - Radio H. (ID = 178706) Radio

M156 ; Mende - Radio H. (ID = 28037) Radio

M156 ; Mende - Radio H. (ID = 28038) Radio

M156 ; Mende - Radio H. (ID = 4502) Radio
M156 ; Mende - Radio H. (ID = 455594) Radio M156 ; Mende - Radio H. (ID = 428332) Radio
M156 ; Mende - Radio H. (ID = 428336) Radio M156 ; Mende - Radio H. (ID = 490) Radio
M156 ; Mende - Radio H. (ID = 428330) Radio M156 ; Mende - Radio H. (ID = 428333) Radio
M156 ; Mende - Radio H. (ID = 428334) Radio M156 ; Mende - Radio H. (ID = 455596) Radio
M156 ; Mende - Radio H. (ID = 2089191) Radio M156 ; Mende - Radio H. (ID = 2089192) Radio
Use red slider bar for more.
M156 ; Mende - Radio H. (ID = 455594) Radio
Mende - Radio H.: M156 [Radio] ID = 455594 525x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model M156 (156G) Bakelit, Mende - Radio H. Mende & Co. GmbH, Dresden

Country:  Germany
Manufacturer / Brand:  Mende - Radio H. Mende & Co. GmbH, Dresden
Brand

System Günther
Year: 1934/1935 Category: Broadcast Receiver - or past WW2 Tuner

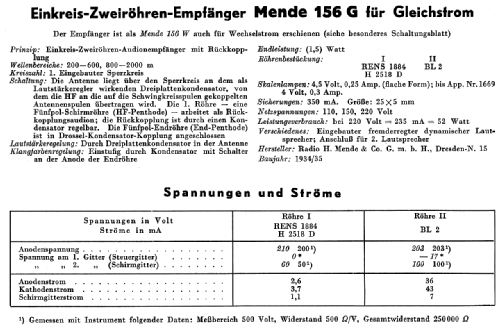

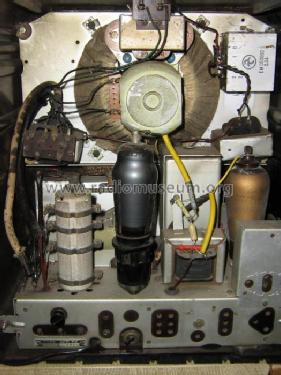

Valves / Tubes 2: RENS1884 BL2
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Direct Current supply (DC) / 110-220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: M156 [Bakelit] - Mende - Radio H. Mende & Co.
Material Bakelite case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 315 x 365 x 215 mm / 12.4 x 14.4 x 8.5 inch
Notes Das Typschild des Empfängers zeigt M156, dagegen führen die Service-Unterlagen die Typbezeichnung 156G
Es handelt sich dabei um dasselbe Modell.
Net weight (2.2 lb = 1 kg) 11 kg / 24 lb 3.7 oz (24.229 lb)
Price in first year of sale 165.00 RM !
Source of data Radiokatalog Band 1, Ernst Erb

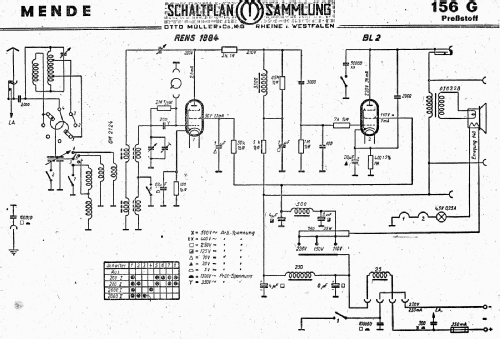

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung

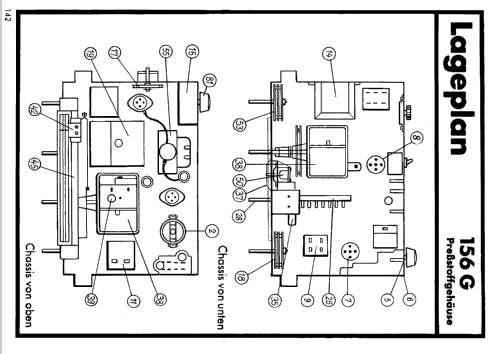

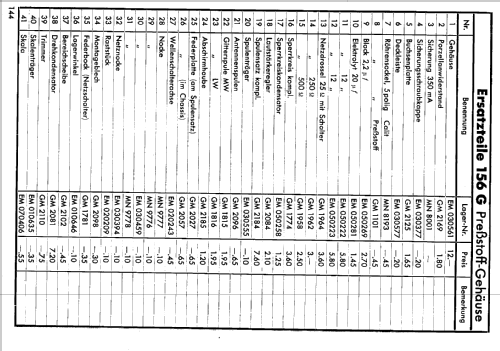

Literature/Schematics (1) -- Original-techn. papers.

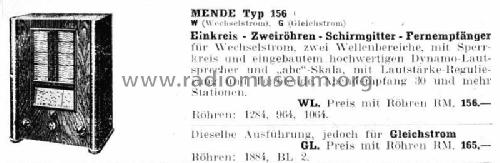

Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
