M156 (156W) Holz

M156 ; Mende - Radio H. (ID = 178651) Radio

M156 ; Mende - Radio H. (ID = 178644) Radio

M156 ; Mende - Radio H. (ID = 178648) Radio

M156 ; Mende - Radio H. (ID = 178650) Radio

M156 ; Mende - Radio H. (ID = 178649) Radio

M156 ; Mende - Radio H. (ID = 178645) Radio

M156 ; Mende - Radio H. (ID = 178646) Radio

M156 ; Mende - Radio H. (ID = 178647) Radio

M156 ; Mende - Radio H. (ID = 28031) Radio

M156 ; Mende - Radio H. (ID = 28032) Radio
M156 ; Mende - Radio H. (ID = 2037431) Radio M156 ; Mende - Radio H. (ID = 259196) Radio
M156 ; Mende - Radio H. (ID = 852261) Radio M156 ; Mende - Radio H. (ID = 259198) Radio
M156 ; Mende - Radio H. (ID = 852258) Radio M156 ; Mende - Radio H. (ID = 852256) Radio
M156 ; Mende - Radio H. (ID = 852257) Radio M156 ; Mende - Radio H. (ID = 852263) Radio
M156 ; Mende - Radio H. (ID = 432464) Radio M156 ; Mende - Radio H. (ID = 708162) Radio
Use red slider bar for more.
M156 ; Mende - Radio H. (ID = 2037431) Radio

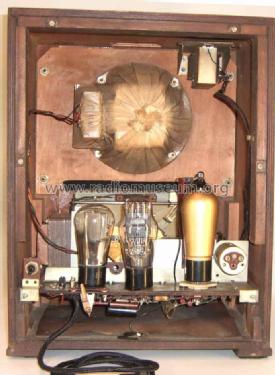

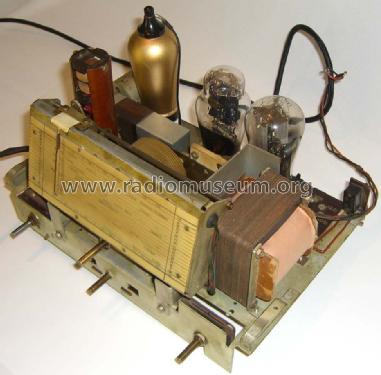

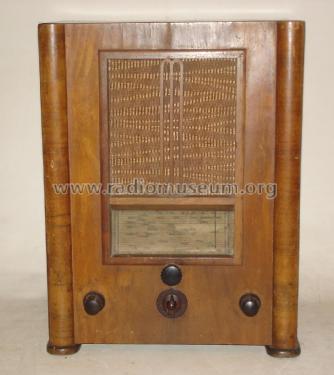

Mende - Radio H.: M156 [Radio] ID = 2037431 1294x1652
Select picture or schematic to display from thumbnails on the right and click for download.
For model M156 (156W) Holz, Mende - Radio H. Mende & Co. GmbH, Dresden

Country:  Germany
Manufacturer / Brand:  Mende - Radio H. Mende & Co. GmbH, Dresden
Brand

System Günther
Year: 1934/1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: RENS1284 RES964 RGN1064
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: M156 [Holz] - Mende - Radio H. Mende & Co.
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 335 x 420 x 230 mm / 13.2 x 16.5 x 9.1 inch
Notes Das Typschild des Empfängers zeigt M156, dagegen führen die Service-Unterlagen die Typbezeichnung 156W. Es handelt sich dabei um dasselbe Modell.
Net weight (2.2 lb = 1 kg) 12.5 kg / 27 lb 8.5 oz (27.533 lb)
Price in first year of sale 156.00 RM
Source of data Radio-Katalog Fricke, Radio Groß-Vertrieb, 1934/35 / Radiokatalog Band 1, Ernst Erb

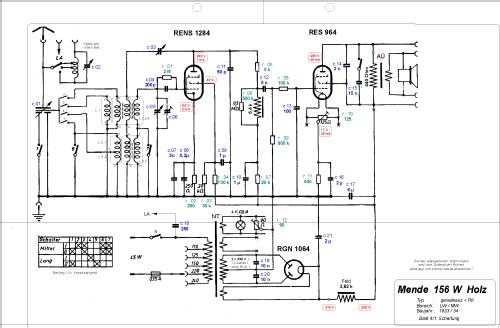

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in Radio-Katalog, Mix & Genest Hansawerke, 1935
Literature/Schematics (1) -- Original-techn. papers.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
Documents regarding this model

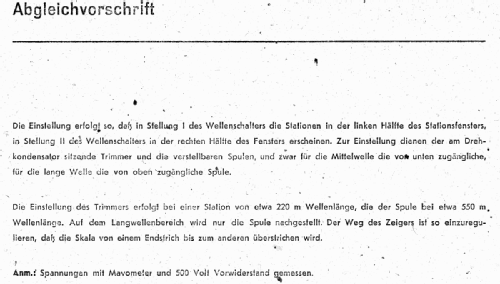

  Mende 156W Anleitung für den Gebrauch 1486 KB
