8-Rö-Super EZ123

8-Rö-Super EZ123; Mende - Radio H. (ID = 474961) Radio

8-Rö-Super EZ123; Mende - Radio H. (ID = 474963) Radio

8-Rö-Super EZ123; Mende - Radio H. (ID = 474957) Radio

8-Rö-Super EZ123; Mende - Radio H. (ID = 474960) Radio

8-Rö-Super EZ123; Mende - Radio H. (ID = 478781) Radio

8-Rö-Super EZ123; Mende - Radio H. (ID = 478782) Radio

8-Rö-Super EZ123; Mende - Radio H. (ID = 478783) Radio

8-Rö-Super EZ123; Mende - Radio H. (ID = 478784) Radio

8-Rö-Super EZ123; Mende - Radio H. (ID = 478785) Radio

8-Rö-Super EZ123; Mende - Radio H. (ID = 478786) Radio
8-Rö-Super EZ123; Mende - Radio H. (ID = 462) Radio 8-Rö-Super EZ123; Mende - Radio H. (ID = 2428419) Radio
Use red slider bar for more.
8-Rö-Super EZ123; Mende - Radio H. (ID = 462) Radio
Mende - Radio H.: 8-Rö-Super EZ123 [Radio] ID = 462 700x445

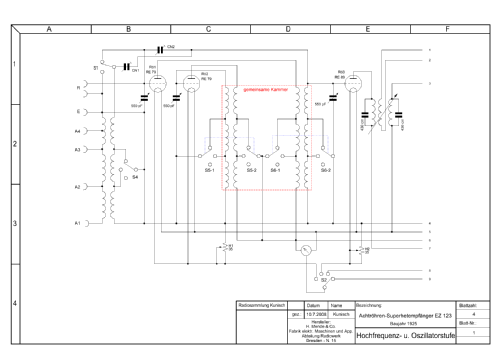

Select picture or schematic to display from thumbnails on the right and click for download.
For model 8-Rö-Super EZ123, Mende - Radio H. Mende & Co. GmbH, Dresden

Country:  Germany
Manufacturer / Brand:  Mende - Radio H. Mende & Co. GmbH, Dresden
Brand

System Günther
Year: 1925 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: RE79 RE79 RE79 RE79 RE79 RE79 RE89 RE89
Main principle Super-Heterodyne (Super in general)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: 8-Rö-Super EZ123 - Mende - Radio H. Mende & Co.
Material Wooden case
Shape Tablemodel, slant panel.
Notes Unterschied ausser Preis ??
Price in first year of sale 600.00 RM
Source of data Radiokatalog Band 1, Ernst Erb
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Mende - Radio H. Mende & Co. GmbH, Dresden
Here you find 307 models, 276 with images and 199 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
