98 G Bogenskala

98 G; Mende - Radio H. (ID = 2115734) Radio 98 G; Mende - Radio H. (ID = 2115735) Radio
98 G; Mende - Radio H. (ID = 2115736) Radio
Use red slider bar for more.
98 G; Mende - Radio H. (ID = 2115734) Radio
Mende - Radio H.: 98 G [Radio] ID = 2115734 1336x1136

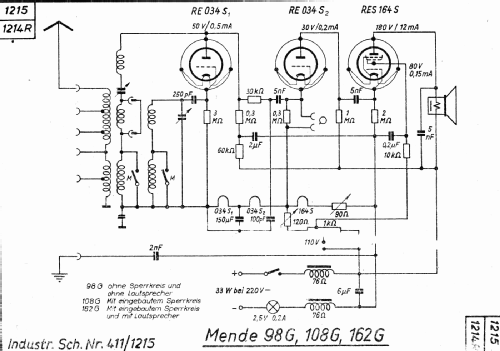

Select picture or schematic to display from thumbnails on the right and click for download.
For model 98 G Bogenskala, Mende - Radio H. Mende & Co. GmbH, Dresden:
ebay 322520895058, 030doreen18

Country:  Germany
Manufacturer / Brand:  Mende - Radio H. Mende & Co. GmbH, Dresden
Brand

System Günther
Year: 1931/1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: RE034s RE034s RES164s
Main principle TRF with regeneration
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Direct Current supply (DC) / 110; 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: 98 G [Bogenskala] - Mende - Radio H. Mende & Co.
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 310 x 205 x 205 mm / 12.2 x 8.1 x 8.1 inch
Notes

Siehe auch Vorläufermodell 98G mit Skalenfenster.

Preis mit Röhren.

Price in first year of sale 128.50 RM
Literature/Schematics (1) Katalog Radio-Zentrale Prohaska 1931/32

Model page created by Martin Steyer. See "Data change" for further contributors.
