For model E52N, Mende - Radio H. Mende & Co. GmbH, Dresden:
Quelle Bechstein

Country:  Germany
Manufacturer / Brand:  Mende - Radio H. Mende & Co. GmbH, Dresden
Brand

System Günther
Year: 1929–1931 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: REN1104 REN1004 RE134 RGN1503
Main principle TRF with regeneration; 2 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: E52N - Mende - Radio H. Mende & Co.
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 320 x 280 x 230 mm / 12.6 x 11 x 9.1 inch
Net weight (2.2 lb = 1 kg) 11.5 kg / 25 lb 5.3 oz (25.33 lb)
Price in first year of sale 251.00 RM !
Source of data Lehner & Küchenmeister 1929 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange + FS-Bestückungstabellen

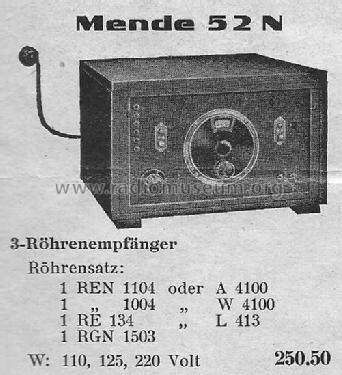

Mentioned in Radio Schnorr 1929
