E67N

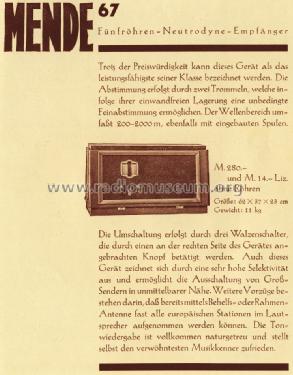

E67N; Mende - Radio H. (ID = 465) Radio E67N; Mende - Radio H. (ID = 1260414) Radio
Use red slider bar for more.

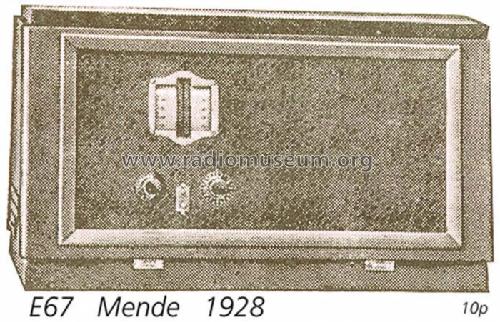

E67N; Mende - Radio H. (ID = 465) Radio
Mende - Radio H.: E67N [Radio] ID = 465 700x451
Select picture or schematic to display from thumbnails on the right and click for download.
For model E67N, Mende - Radio H. Mende & Co. GmbH, Dresden

Country:  Germany
Manufacturer / Brand:  Mende - Radio H. Mende & Co. GmbH, Dresden
Brand

System Günther
Year: 1928/1929 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: REN1004 REN1104 REN1104 REN1104 RE134 RGN1503
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown); 2 Special; 2 AF stage(s); Neutrodyne
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: E67N - Mende - Radio H. Mende & Co.
Material Wooden case
Shape Tablemodel, slant panel.
Price in first year of sale 429.00 RM +
Source of data Radio Schnorr 1929 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference FS-Bestückungstab. (wahrsch. m.Fehler)
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
