• Country
• Germany

• Manufacturer / Brand
• Mende - Radio H. Mende & Co. GmbH, Dresden

• Year
• 1933/1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 3541

• • Brand: System Günther

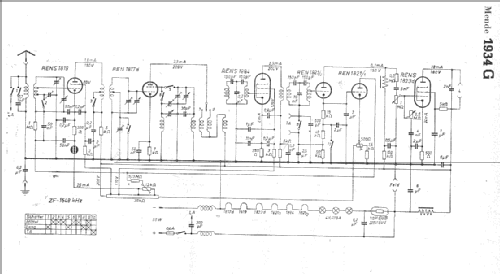

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• RENS1819 REN1817d RENS1884 REN1814 REN1821 RENS1823d EUIII or EUI

• Main principle
• Superhet with RF-stage; ZF/IF 1648 kHz; Anode bend detection

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Direct Current supply (DC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Super S-1934G Kabinett - Mende - Radio H. Mende & Co.

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 390 x 320 x 290 mm / 15.4 x 12.6 x 11.4 inch

• Notes

• Instrument für Feldstärke-Anzeige. Demodulation mittels Anodengleichrichtung, separate Triode REN1821 für Regelspannungserzeugung.

• Price in first year of sale
• 332.00 RM !

• Source of data
• Radio-Zentrale Prohaska 1933/34 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Mentioned in
• -- Original-techn. papers.
