Kraftverstärker-Anlage VG82 (GV82)

Kraftverstärker-Anlage VG82 ; Mende - Radio H. (ID = 1992168) Ampl/Mixer Kraftverstärker-Anlage VG82 ; Mende - Radio H. (ID = 1260408) Ampl/Mixer
Kraftverstärker-Anlage VG82 ; Mende - Radio H. (ID = 1260965) Ampl/Mixer Kraftverstärker-Anlage VG82 ; Mende - Radio H. (ID = 1992167) Ampl/Mixer
Use red slider bar for more.
Kraftverstärker-Anlage VG82 ; Mende - Radio H. (ID = 1992168) Ampl/Mixer
Mende - Radio H.: Kraftverstärker-Anlage VG82 [Ampl/Mixer] ID = 1992168 1400x822
Select picture or schematic to display from thumbnails on the right and click for download.
For model Kraftverstärker-Anlage VG82 (GV82), Mende - Radio H. Mende & Co. GmbH, Dresden:

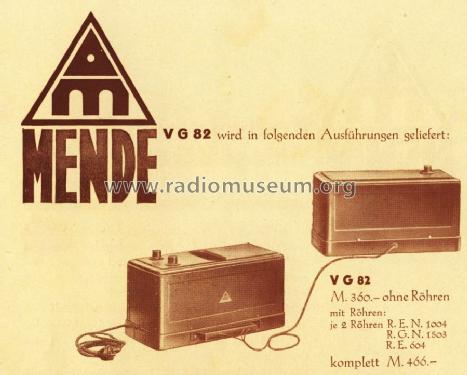

Kahle & Cless, Leipzig, Katalog 1931

Country:  Germany
Manufacturer / Brand:  Mende - Radio H. Mende & Co. GmbH, Dresden
Brand

System Günther
Year: 1928–1931 Category: Audio Amplifier or -mixer
Valves / Tubes 6: REN1004 REN1004 RE604 RE604 RGN1503 RGN1503
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Kraftverstärker-Anlage VG82 - Mende - Radio H. Mende & Co.
Notes Gegentakt
Price in first year of sale 360.00 RM +
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Röhren in FS-Bestückungstabellen
Mentioned in Kahle & Cless, Leipzig, Katalog 1931
