126A

126A; Mercury Radio; Elche (ID = 1382213) Radio 126A; Mercury Radio; Elche (ID = 1382214) Radio
126A; Mercury Radio; Elche (ID = 1382215) Radio 126A; Mercury Radio; Elche (ID = 1382216) Radio
126A; Mercury Radio; Elche (ID = 1382217) Radio 126A; Mercury Radio; Elche (ID = 1382218) Radio
126A; Mercury Radio; Elche (ID = 1382219) Radio 126A; Mercury Radio; Elche (ID = 1382220) Radio
126A; Mercury Radio; Elche (ID = 1382221) Radio 126A; Mercury Radio; Elche (ID = 1382222) Radio
Use red slider bar for more.

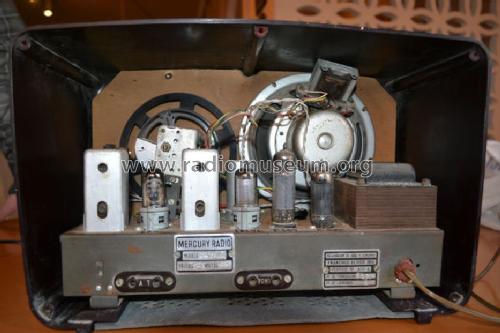

126A; Mercury Radio; Elche (ID = 1382213) Radio
Mercury Radio; Elche: 126A [Radio] ID = 1382213 933x622
Select picture or schematic to display from thumbnails on the right and click for download.
For model 126A, Mercury Radio; Elche

Country:  Spain
Manufacturer / Brand:  Mercury Radio; Elche
Year: 1953 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH81 EF41 EBC41 EL84 EZ80
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 126A - Mercury Radio; Elche
Material Bakelite case
Shape Tablemodel, with any shape - general.

Model page created by Carlos Sempere-Carrión. See "Data change" for further contributors.



All listed radios etc. from Mercury Radio; Elche
Here you find 2 models, 2 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
