Diamant II U

Diamant II U; Merkur Apparatebau; (ID = 205193) Radio Diamant II U; Merkur Apparatebau; (ID = 205197) Radio
Diamant II U; Merkur Apparatebau; (ID = 205194) Radio Diamant II U; Merkur Apparatebau; (ID = 205198) Radio
Use red slider bar for more.
Diamant II U; Merkur Apparatebau; (ID = 205193) Radio

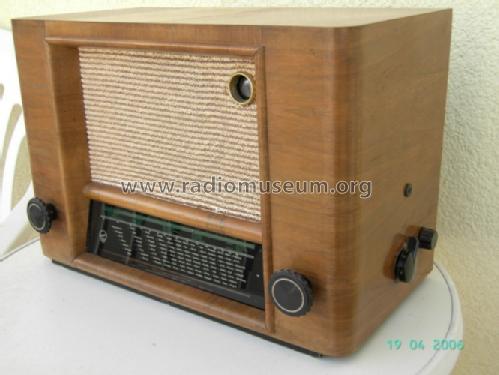

Merkur Apparatebau;: Diamant II U [Radio] ID = 205193 666x500
Select picture or schematic to display from thumbnails on the right and click for download.
For model Diamant II U, Merkur Apparatebau; Röthenbach/Allgäu, später Rastatt

Country:  Germany
Manufacturer / Brand:  Merkur Apparatebau; Röthenbach/Allgäu, später Rastatt
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH11 EBF11 EL11 AZ11 EM4
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110, 125, 150, 220, 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
Power out
from Radiomuseum.org Model: Diamant II U - Merkur Apparatebau; Röthenbach
Material Wooden case
Dimensions (WHD) 470 x 320 x 235 mm / 18.5 x 12.6 x 9.3 inch
Notes [8-185B]
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Picture reference Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.


All listed radios etc. from Merkur Apparatebau; Röthenbach/Allgäu, später Rastatt
Here you find 8 models, 5 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
