A300

A300; Messgerätewerk (ID = 380968) Car Radio
A300; Messgerätewerk (ID = 2124839) Car Radio A300; Messgerätewerk (ID = 2124840) Car Radio
A300; Messgerätewerk (ID = 342881) Car Radio A300; Messgerätewerk (ID = 342882) Car Radio
A300; Messgerätewerk (ID = 1211581) Car Radio
Use red slider bar for more.
A300; Messgerätewerk (ID = 2124839) Car Radio

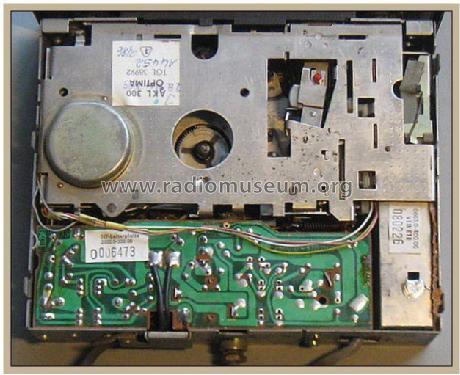

Messgerätewerk: A300 [Car Radio] ID = 2124839 1400x934
Select picture or schematic to display from thumbnails on the right and click for download.
For model A300, Messgerätewerk Zwönitz, VEB; Zwönitz (Ostd.)

Country:  Germany
Manufacturer / Brand:  Messgerätewerk Zwönitz, VEB; Zwönitz (Ostd.)
Year: 1980 ? Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 17:
Main principle Superheterodyne (common); ZF/IF 455/ 10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 4 W (unknown quality)
from Radiomuseum.org Model: A300 - Messgerätewerk Zwönitz, VEB;
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 180 x 52 x 150 mm / 7.1 x 2 x 5.9 inch
Notes Mono-Variante des A320.
Price in first year of sale 970.00 M
Mentioned in Service-DVD Funkverlag B. Hein

Model page created by Jörg Kulbe. See "Data change" for further contributors.



All listed radios etc. from Messgerätewerk Zwönitz, VEB; Zwönitz (Ostd.)
Here you find 65 models, 57 with images and 45 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Messgerätewerk: A300
Threads: 1 | Posts: 1
Hits: 1536     Replies: 0
messge-zwo: A300 ;
Egon Strampe
18.Oct.11
  1

Service A-300

Attachments


Messgerätewerk: A300
End of forum contributions about this model
