• Country
• Germany

• Manufacturer / Brand
• Messgerätewerk Zwönitz, VEB; Zwönitz (Ostd.)

• Year
• 1953 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 250251

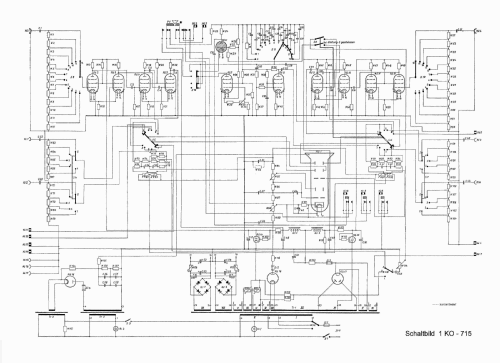

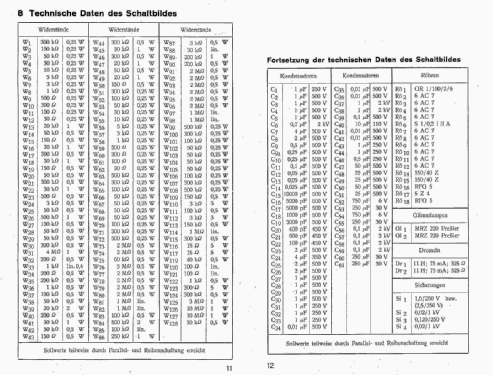

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 14

• Valves / Tubes
• OR1/100/2/6 6AC7_DDR 6AC7_DDR 5Z4C_DDR RFG5 RFG5 S1/0,2iIIA STV150/40Z STV150/40Z

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

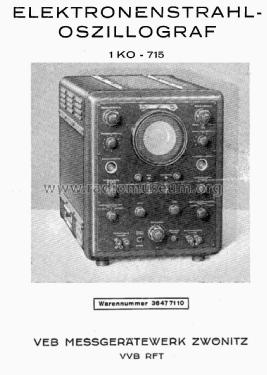

• Model: Elektronenstrahl-Oszillograf 1KO-715 - Messgerätewerk Zwönitz, VEB;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 335 x 410 x 520 mm / 13.2 x 16.1 x 20.5 inch

• Notes

• Elektronenstrahl-Oszillograf für den Frequenzbereich von 1 Hz bis 20 kHz.

  6AC7_DDR  10 Stück eingesetzt

• Net weight (2.2 lb = 1 kg)
• 25 kg / 55 lb 1.1 oz (55.066 lb)

• Mentioned in
• Deutsche Funk-Technik (Deutsche Funktechnik) [DDR] (1953, Heft 9, Seite 271)

• Literature/Schematics (1)
• - - Manufacturers Literature

• Author
• Model page created by Michael Mischke. See "Data change" for further contributors.
