Isolationsmessgerät - Kurbelinduktor 1000V
Messtechnik Mellenbach ; MTM ; Mellenbach/Thür. VEB; (Ostd.)
- Country
- Germany
- Manufacturer / Brand
- Messtechnik Mellenbach ; MTM ; Mellenbach/Thür. VEB; (Ostd.)
- Year
- 1965 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 262538
- Number of Transistors
- Semiconductors
- Tr.Gl.=Metal-rectif.
- Wave bands
- - without
- Power type and voltage
- Solar- and/or muscle driven, also addl. power jack possible / DC: 1000 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Various materials
- from Radiomuseum.org
- Model: Isolationsmessgerät - Kurbelinduktor 1000V - Messtechnik Mellenbach ; MTM
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 175 x 157 x 120 mm / 6.9 x 6.2 x 4.7 inch
- Notes
-

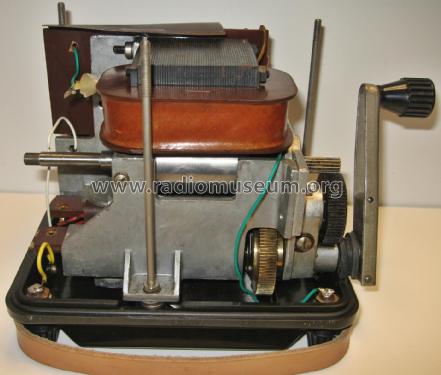

1000 V - Isolationsmessgerät; Spannungserzeugung mittels Kurbelinduktor; Gehäuse: Aluminiumguss, Haube: Bakelit; anklappbare Handkurbel.
- Net weight (2.2 lb = 1 kg)
- 3.033 kg / 6 lb 10.9 oz (6.681 lb)
- Author
- Model page created by Michael Mischke. See "Data change" for further contributors.
