Vorwiderstand RL20/E 600V- 1200V

Vorwiderstand RL20/E; Metra Blansko; (ID = 1835662) Misc Vorwiderstand RL20/E; Metra Blansko; (ID = 1835663) Misc

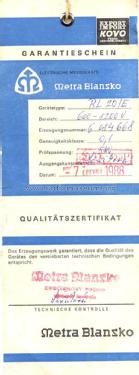

Vorwiderstand RL20/E; Metra Blansko; (ID = 1835665) Misc
Use red slider bar for more.
Vorwiderstand RL20/E; Metra Blansko; (ID = 1835662) Misc
Metra Blansko;: Vorwiderstand RL20/E [Misc] ID = 1835662 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Vorwiderstand RL20/E 600V- 1200V, Metra Blansko; Blansko:
Vorwiderstand RL20/E vorn

Country:  Czechoslovakia
Manufacturer / Brand:  Metra Blansko; Blansko
Year: 1988 Category: Miscellaneous (Other, Various) - see notes
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Vorwiderstand RL20/E [600V- 1200V] - Metra Blansko; Blansko
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 200 x 85 x 110 mm / 7.9 x 3.3 x 4.3 inch
Notes

Vorwiderstand RL20/E  600V- 1200V, Zusatz zum Wattmeter EL20 von Metra; Blansko,

66,66 Ohm/ V.

Net weight (2.2 lb = 1 kg) 0.8 kg / 1 lb 12.2 oz (1.762 lb)

Model page created by Helmut Matysik. See "Data change" for further contributors.
