• Country
• France

• Manufacturer / Brand
• Metrix, Compagnie Générale de Métrologie; Annecy

• Year
• 1948

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 82248

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• AZ1

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 150; 200; 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Pentemètre 305 - Metrix, Compagnie Générale de

• Shape
• Tablemodel, slant panel.

• Dimensions (WHD)
• 490 x 190 x 380 mm / 19.3 x 7.5 x 15 inch

• Notes

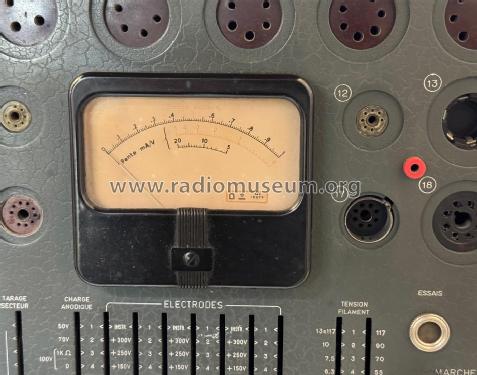

• Bei den Prüflingen wird direkt die Steilheit in ma/V angezeigt. Die Einstelldaten der US- und europäischen Röhren sind auf drehbaren Walzen hinterlegt.

  Prise casque.

• Net weight (2.2 lb = 1 kg)
• 13.5 kg / 29 lb 11.8 oz (29.736 lb)

• Literature/Schematics (1)
• Toute la radio (No 124, Mars-Avril 1948)
