RLC-Messbrücke MA16

Metrohm AG, Herisau

  • Year
  • 1948 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 83156

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Power type and voltage
  • 110-240 Volt
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: RLC-Messbrücke MA16 - Metrohm AG, Herisau
  • Shape
  • Tablemodel, slant panel.
  • Dimensions (WHD)
  • 206 x 280 x 240 mm / 8.1 x 11 x 9.4 inch
  • Notes
  • Brückenabgleich erfolgt mittels Anzeige des magischen Auges
  • Net weight (2.2 lb = 1 kg)
  • 4.2 kg / 9 lb 4 oz (9.251 lb)
  • External source of data

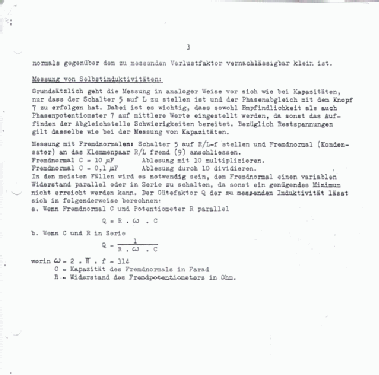

  • Gerät in der Sammlung, Anleitung
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Author
  • Model page created by Felix Schaffhauser. See "Data change" for further contributors.
