Cosmos Receiver Unit VR3

Cosmos Receiver Unit VR3; Metropolitan-Vickers (ID = 877039) Radio Cosmos Receiver Unit VR3; Metropolitan-Vickers (ID = 877040) Radio
Cosmos Receiver Unit VR3; Metropolitan-Vickers (ID = 877041) Radio
Use red slider bar for more.
Cosmos Receiver Unit VR3; Metropolitan-Vickers (ID = 877039) Radio
Metropolitan-Vickers: Cosmos Receiver Unit VR3 [Radio] ID = 877039 400x246
Select picture or schematic to display from thumbnails on the right and click for download.
For model Cosmos Receiver Unit VR3, Metropolitan-Vickers (Metro-Vick, Cosmos); GB:

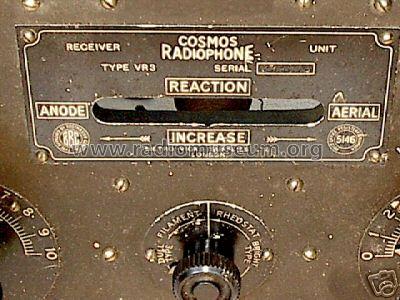

This picture is too small, but on the photo with the plae in bigger size is visiple "Type VR3".

Country:  Great Britain (UK)
Manufacturer / Brand:  Metropolitan-Vickers (Metro-Vick, Cosmos); GB
Brand

Cosmos-valves
Year: 1924 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 2:
Main principle TRF with regeneration
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Cosmos Receiver Unit VR3 - Metropolitan-Vickers Metro-
Material Various materials
Shape Chassis only or for «building in»
Notes BBC/PMG stamp, GPO No.5146. Plug-in range blocks for wave change. Reaction adjustable for antenna circuit or detector circuit (Anode). Double filament rheostats for bright or dull emitters. Together with A5 in Radiophone. The combination of VR3 and A5 was also called the VS6, first advertised in September 1924.
Source of data Radio! Radio!

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
