9045; Metz Transformatoren (ID = 353380) R-Player
Metz Transformatoren: 9045 [R-Player] ID = 353380 933x606

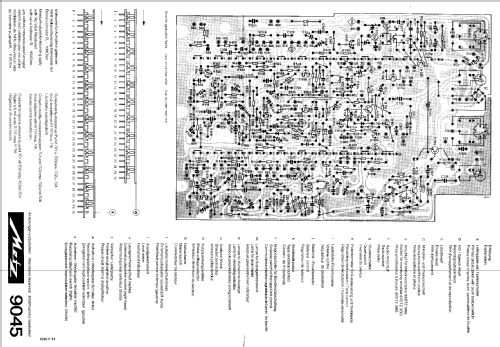

Select picture or schematic to display from thumbnails on the right and click for download.
For model 9045, Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth

Country:  Germany
Manufacturer / Brand:  Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth
Year: 1971–1973 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 21:
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: 9045 - Metz Transformatoren- und
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 395 x 175 x 350 mm / 15.6 x 6.9 x 13.8 inch
Notes Vierspur-Stereo; 9,5 cm/s; Spulen-Ø 18 cm.
Net weight (2.2 lb = 1 kg) 8.5 kg / 18 lb 11.6 oz (18.722 lb)
External source of data Erb
Source of data Handbuch VDRG 1971/1972
