• Year
  • 1950/1951
  • Category
  • Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter
  • Radiomuseum.org ID
  • 3693

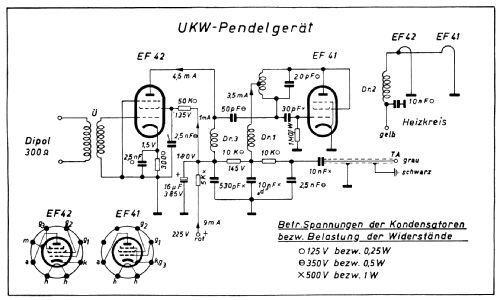

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 2
  • Main principle
  • RF Converter/Adapter (not voltage converter)
  • Tuned circuits
  • 1 FM circuit(s)
  • Wave bands
  • FM Broadcast Band Only
  • Power type and voltage
  • Powered by external power supply or a main unit.
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Capri UKW-Einsatz UKP 11U/2 - Metz Transformatoren- und
  • Dimensions (WHD)
  • 70 x 70 x 120 mm / 2.8 x 2.8 x 4.7 inch
  • Notes
  • auch Mod.Java (11U/1)
  • Net weight (2.2 lb = 1 kg)
  • 0.7 kg / 1 lb 8.7 oz (1.542 lb)
  • Price in first year of sale
  • 43.00 DM
  • Source of data
  • Radiokatalog Band 1, Ernst Erb
