HiFi Stereo Turm 4851
Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth
- Country
- Germany
- Manufacturer / Brand
- Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth
- Year
- 1984/1985
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 177602

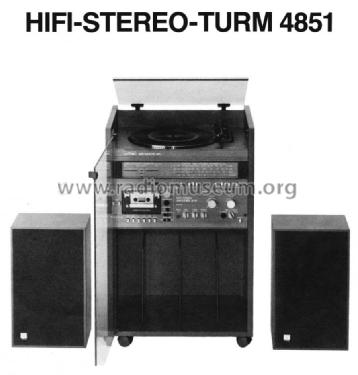

Bild aus Metz Service Unterlagen
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 39
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 100 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: HiFi Stereo Turm 4851 - Metz Transformatoren- und
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
- 12 IC; Turm mit Kassettenrecorder, Musikleistung 2x50 Watt, Übertragungsbereich 25 Hz-25 kHz, Plattenspieler, 2 Geschwindigkeiten.
- Literature/Schematics (1)
- Original Metz Service Unterlagen
- Author
- Model page created by Josef Pilz. See "Data change" for further contributors.
