Konsul A46

Konsul A46; Metz Transformatoren (ID = 664416) Radio

Konsul A46; Metz Transformatoren (ID = 4285) Radio
Konsul A46; Metz Transformatoren (ID = 650938) Radio Konsul A46; Metz Transformatoren (ID = 650939) Radio
Konsul A46; Metz Transformatoren (ID = 650940) Radio Konsul A46; Metz Transformatoren (ID = 108897) Radio
Konsul A46; Metz Transformatoren (ID = 108898) Radio Konsul A46; Metz Transformatoren (ID = 108899) Radio
Konsul A46; Metz Transformatoren (ID = 650941) Radio Konsul A46; Metz Transformatoren (ID = 668759) Radio
Use red slider bar for more.
Konsul A46; Metz Transformatoren (ID = 650938) Radio

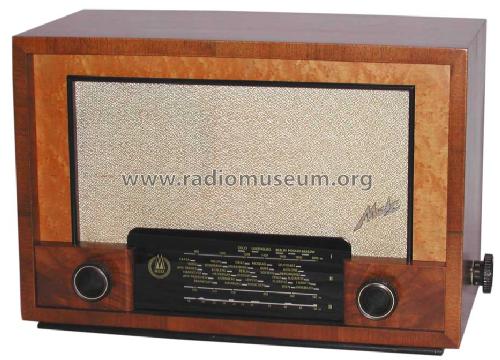

Metz Transformatoren: Konsul A46 [Radio] ID = 650938 933x672
Select picture or schematic to display from thumbnails on the right and click for download.
For model Konsul A46, Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth:
Eigenes Bild.

Country:  Germany
Manufacturer / Brand:  Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth
Year: 1948/1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH5 UCH5 UBL3 UY3
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 120/220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 18 cm = 7.1 inch
Power out
from Radiomuseum.org Model: Konsul A46 - Metz Transformatoren- und
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 420 x 280 x 210 mm / 16.5 x 11 x 8.3 inch
Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
External source of data Ernst Erb, HB9RXQ
Source of data Das Rundfunk-Jahr 1948/49
Literature/Schematics (1) -- Original-techn. papers.


All listed radios etc. from Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth
