Music-Mate (Port-O-Fone)

Music-Mate ; Majestic Radio & (ID = 1725540) Radio
Music-Mate ; Majestic Radio & (ID = 617022) Radio Music-Mate ; Majestic Radio & (ID = 617023) Radio
Music-Mate ; Majestic Radio & (ID = 617028) Radio Music-Mate ; Majestic Radio & (ID = 617018) Radio
Music-Mate ; Majestic Radio & (ID = 617020) Radio Music-Mate ; Majestic Radio & (ID = 617021) Radio
Music-Mate ; Majestic Radio & (ID = 617024) Radio Music-Mate ; Majestic Radio & (ID = 617025) Radio
Music-Mate ; Majestic Radio & (ID = 1725344) Radio Music-Mate ; Majestic Radio & (ID = 1725345) Radio
Use red slider bar for more.

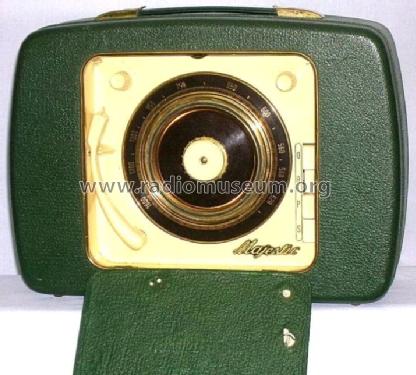

Music-Mate ; Majestic Radio & (ID = 617022) Radio
Majestic Radio &: Music-Mate [Radio] ID = 617022 715x644
Select picture or schematic to display from thumbnails on the right and click for download.
For model Music-Mate (Port-O-Fone), Majestic Radio & Television Co.,(post 1932)

Country:  United States of America (USA)
Manufacturer / Brand:  Majestic Radio & Television Co.,(post 1932)
Year: 1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: DK96 or DK92 DF96 DAF96 DL94
Main principle Superheterodyne (common); ZF/IF 452 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details Record Player (not changer)
Power type and voltage Line / Storage batteries (perhaps also batteries) / AC supply: 110 or battery pack: 2 x 1.5 & 90 & 4 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Music-Mate - Majestic Radio & Television Co
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 360 x 125 x 250 mm / 14.2 x 4.9 x 9.8 inch
Notes

Portable Radio-Phonograph with pushbutton controls and built-in Ferrite double antenna. Record player 45 rpm only, radio with BC tuning 520 - 1600 kHz. Oval speaker 180 x 110 mm. Crystal pick-up.

Operates on batteries (90 V anode and 2 x 1.5 V heater, and 4 x 1.5 V for the record player) or mains (by means of an AC power supply that fits in the battery compartment, called "AC-Elektric Pack for Majestic Music-Mate"). Power saving function.

Luggage case with leather handle, availabe in Tan, Red, Brown, Green. Specified weight is including batteries.

This model was advertised as "Music Mate", within the actual device a label "Port-O-Fone" can be found. It is an import version of the German Metz Babyphon.

Made in Germany.

Net weight (2.2 lb = 1 kg) 12 lb 0 oz (12 lb) / 5.448 kg
Mentioned in Billboard, 25 Sep 1954

Model page created by Peter Roggenhofer † 25.4.18. See "Data change" for further contributors.
