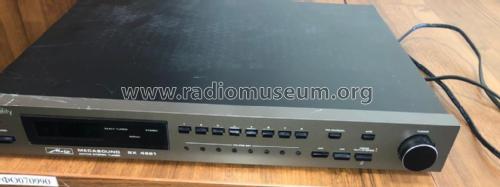

Stereo AM/FM Tuner SX-4981

• Country
• Germany

• Manufacturer / Brand
• Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth

• Year
• 1981–1983

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 177957

• Picture

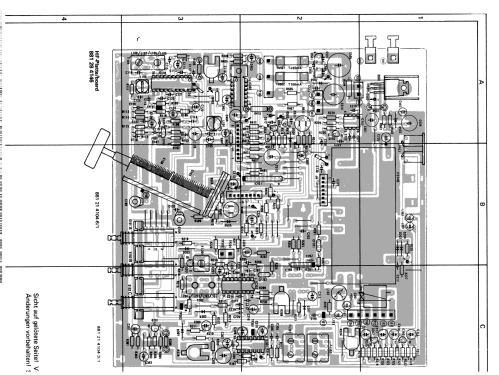

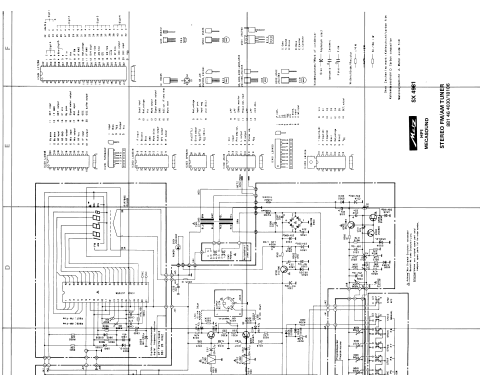

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 450/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo AM/FM Tuner SX-4981 - Metz Transformatoren- und

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 430 x 60 x 350 mm / 16.9 x 2.4 x 13.8 inch

• Notes
• 6 IC;

• Literature/Schematics (1)
• Original Metz Setrvice Unterlagen

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
