Superspulensatz 6-Kreis

Superspulensatz 6-Kreis; Metz Transformatoren (ID = 1346060) mod-past25

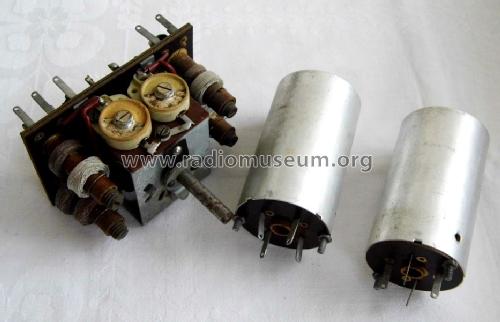

Superspulensatz 6-Kreis; Metz Transformatoren (ID = 1346063) mod-past25 Superspulensatz 6-Kreis; Metz Transformatoren (ID = 1346065) mod-past25
Superspulensatz 6-Kreis; Metz Transformatoren (ID = 1346067) mod-past25 Superspulensatz 6-Kreis; Metz Transformatoren (ID = 1346069) mod-past25
Use red slider bar for more.
Superspulensatz 6-Kreis; Metz Transformatoren (ID = 1346063) mod-past25
Metz Transformatoren: Superspulensatz 6-Kreis [mod-past25] ID = 1346063 933x614
Select picture or schematic to display from thumbnails on the right and click for download.
For model Superspulensatz 6-Kreis, Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth

Country:  Germany
Manufacturer / Brand:  Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth
Year: 1947 ?? Category: Radio module post 1925 (not a part, not a key)
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Superspulensatz 6-Kreis - Metz Transformatoren- und
Material Various materials
Shape Chassis only or for «building in»
Notes

6-Kreis-Superspulensatz für LW, MW und KW mit zwei Bandfiltern.

Source of data -- Schematic

Model page created by Holger Drechsel. See "Data change" for further contributors.
