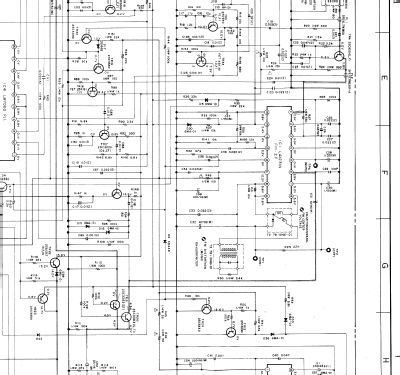

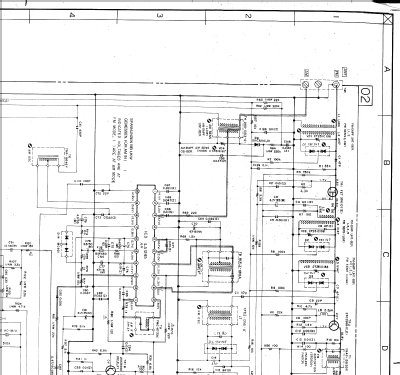

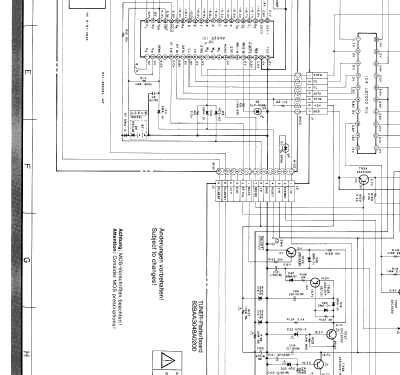

Click on the schematic thumbnail to request the schematic as a free document.
Technical Specifications
Number of Transistors
Semiconductors present.
Semiconductors
Main principle
Superheterodyne (common)
Wave bands
Broadcast (BC) and FM or UHF.
Power type and voltage
Alternating Current supply (AC) / 220 Volt
Loudspeaker
- For headphones or amp.
Material
Metal case
from Radiomuseum.org
Model: Mecasound Quartz-Synthesizer-Tuner SYT 4991 - Metz Transformatoren- und
Shape
Book-shelf unit.
Dimensions (WHD)
440 x 55 x 260 mm / 17.3 x 2.2 x 10.2 inch
Notes
Mecasound SYT 4991
AM/FM-Quartz-Synthesizer-Tuner mit 16 Stationsspeicher (frei programmierbar) Mikroprozessor-Multidisplay mit Anzeige für Frequenz, Band, Auto/Stereo, Mittenabstimmung und Memory.
Gehäuseausführung: Schwarz-Metallic.
Dieses Gerät wurde von AKAI zugekauft, vergleiche auch AKAI AT-A301
Net weight (2.2 lb = 1 kg)
2.7 kg / 5 lb 15.2 oz (5.947 lb)
Source of data
-- Original prospect or advert
Mentioned in
Metz Programm 1986, Bedienungsanleitung
Author
Model page created by Franz Scharner. See "Data change" for further contributors.
