teleclock 153R5-10 MKU

teleclock 153R5-10; Metz Transformatoren (ID = 1614971) Radio

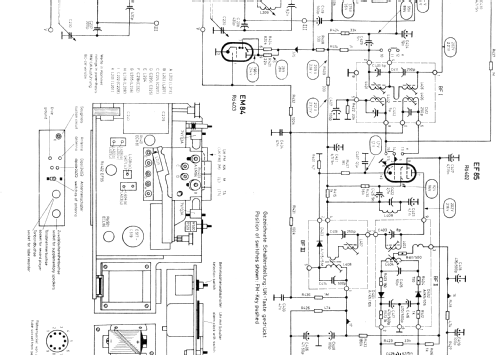

teleclock 153R5-10; Metz Transformatoren (ID = 1614972) Radio

teleclock 153R5-10; Metz Transformatoren (ID = 1614975) Radio
teleclock 153R5-10; Metz Transformatoren (ID = 1734479) Radio teleclock 153R5-10; Metz Transformatoren (ID = 57638) Radio
teleclock 153R5-10; Metz Transformatoren (ID = 57645) Radio teleclock 153R5-10; Metz Transformatoren (ID = 57646) Radio
teleclock 153R5-10; Metz Transformatoren (ID = 57644) Radio teleclock 153R5-10; Metz Transformatoren (ID = 57647) Radio
teleclock 153R5-10; Metz Transformatoren (ID = 57648) Radio teleclock 153R5-10; Metz Transformatoren (ID = 1734480) Radio
teleclock 153R5-10; Metz Transformatoren (ID = 1734481) Radio teleclock 153R5-10; Metz Transformatoren (ID = 1734482) Radio
Use red slider bar for more.
teleclock 153R5-10; Metz Transformatoren (ID = 1734479) Radio
Metz Transformatoren: teleclock 153R5-10 [Radio] ID = 1734479 933x691
Select picture or schematic to display from thumbnails on the right and click for download.
For model teleclock 153R5-10 MKU, Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth

Country:  Germany
Manufacturer / Brand:  Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth
Year: 1963–1965 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH81 EF85 ECL86 EM84
Semiconductors (the count is only for transistors) 2: AF102 AF125
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 & 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 4 W (unknown quality)
from Radiomuseum.org Model: teleclock 153R5-10 [MKU] - Metz Transformatoren- und
Material Wooden case
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 450 x 210 x 195 mm / 17.7 x 8.3 x 7.7 inch
Notes UKW-Teil mit Transistoren.
Eingebaute Präzisions-Schaltuhr mit automatischem, elektrischem Aufzug (1,5-V-Monozelle).
Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
Price in first year of sale 449.00 DM
External source of data Erb
Source of data Handbuch VDRG 1964/1965
