• Country
• Italy

• Manufacturer / Brand
• MIAL; Milano

• Year
• 1948 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 162656

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• EF6 WE13 WE13 80 80 DG7-2

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Material
• Metal case

• from Radiomuseum.org
• Model: Oscillografo 170 - MIAL; Milano

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 190 x 360 x 310 mm / 7.5 x 14.2 x 12.2 inch

• Notes

• Breitband Oscilloscop, als Ersatztype für die WE13 kann die ECL11 verwendet werden

  Oscilloscopio a banda larga. Le WE13 possono essere sostituite dalle ECL11.

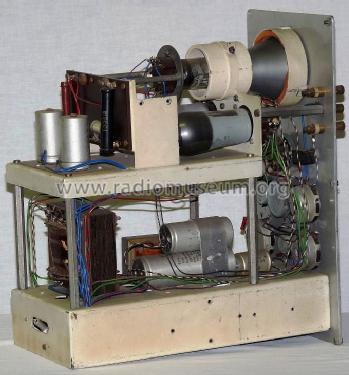

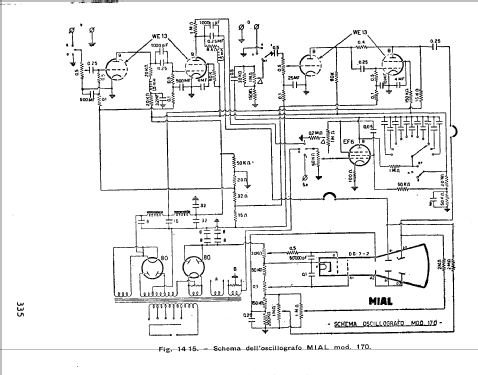

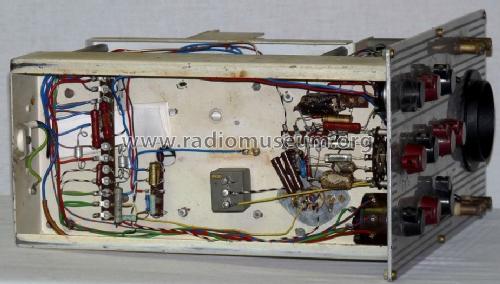

  Lo schema presente indica le valvole elencate. La 12AT7 (?) è chiaramente stata installata in luogo della EF6. Per quanto riguarda le due 80 potrebbero essere nella parte sottostante dove confluiscono parecchi cavi, oppure sostituite da raddrizzatori a stato solido.

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• Author
• Model page created by Museum Roggenhofer. See "Data change" for further contributors.
