• Year
  • 1972 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 206750

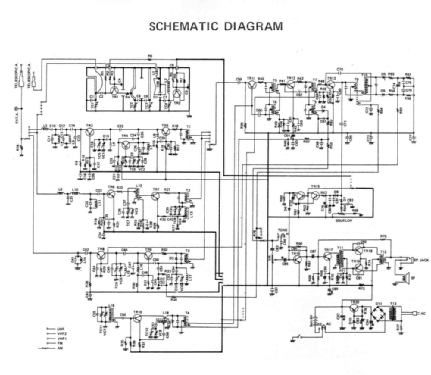

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 20
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave and more than two Short Wave bands.
  • Power type and voltage
  • Line / Batteries (any type) / 125 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
  • Power out
  • 1 W (unknown quality)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org

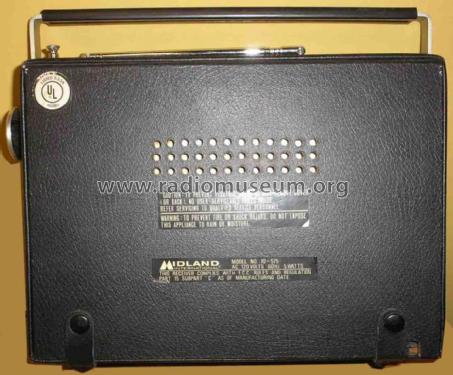

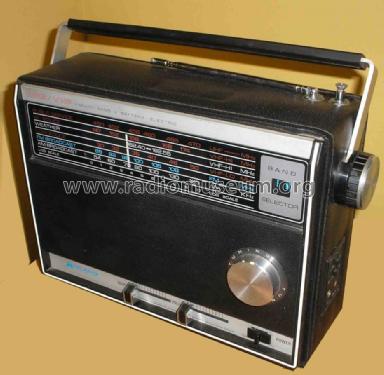

  • Model: Multi Band Radio 10-575 - Midland International
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Dimensions (WHD)
  • 10.5 x 7.23 x 3.3 inch / 267 x 184 x 84 mm
  • Notes
  • 10 diodes, 1 selenium rectifier, 1 thermistor.
  • Net weight (2.2 lb = 1 kg)
  • 4.6 lb (4 lb 9.6 oz) / 2.088 kg
  • Price in first year of sale
  • 9,000.00 ESP
  • Author
  • Model page created by José Moreno-Conej. See "Data change" for further contributors.
