• Year
  • 1948
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 47169
    • Brand: Miraco

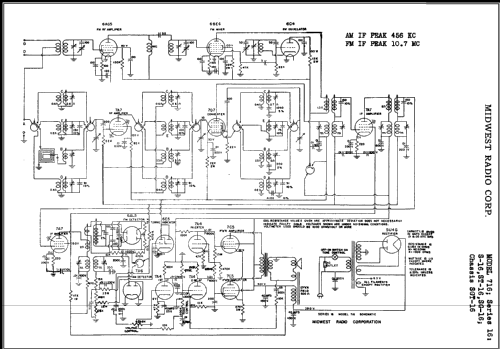

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 16
  • Main principle
  • Superhet with RF-stage; ZF/IF 456/10700 kHz
  • Wave bands
  • Broadcast, more than 2 SW bands plus FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 105 - 125 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 11.5 inch = 29.2 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: S-16 Ch= SGT-16 - Midwest Radio Co., The, Miraco
  • Shape
  • Console with any shape - in general
  • Notes
  • There is also an improved chassis version noted with 716A. But that is a model, and the chassis name (SGT-16)is the same for both versions!
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 16 = ca. 1948 and before
