A-16 Ch= 16-35 mod.1935

A-16 Ch= 16-35; Midwest Radio Co., (ID = 525693) Radio

A-16 Ch= 16-35; Midwest Radio Co., (ID = 525694) Radio
A-16 Ch= 16-35; Midwest Radio Co., (ID = 541222) Radio A-16 Ch= 16-35; Midwest Radio Co., (ID = 541223) Radio

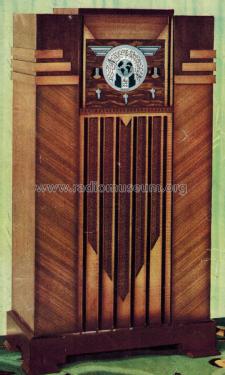

A-16 Ch= 16-35; Midwest Radio Co., (ID = 712027) Radio A-16 Ch= 16-35; Midwest Radio Co., (ID = 1972200) Radio
Use red slider bar for more.
A-16 Ch= 16-35; Midwest Radio Co., (ID = 541222) Radio
Midwest Radio Co.,: A-16 Ch= 16-35 [Radio] ID = 541222 259x396
Select picture or schematic to display from thumbnails on the right and click for download.
For model A-16 Ch= 16-35 mod.1935, Midwest Radio Co., The, (Miraco); Cincinnati, OH:
By courtesy of "antiqueradios.com"!

Country:  United States of America (USA)
Manufacturer / Brand:  Midwest Radio Co., The, (Miraco); Cincinnati, OH
Brand

Miraco
Year: 1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 16: 6D6 6D6 6D6 6D6 6D6 76 76 76 6B7 6C6 2A5 45 45 45 45 5Z3
Main principle Superhet with RF-stage; ZF/IF 456 kHz
Tuned circuits 10 AM circuit(s)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: A-16 Ch= 16-35 [mod.1935] - Midwest Radio Co., The, Miraco
Material Wooden case
Shape Console with any shape - in general
Source of data Pre-War Consoles
Circuit diagram reference Rider's Perpetual, Volume 6 = 1935 and before

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
