R-16 Ch= RGT-16
Midwest Radio Co., The, (Miraco); Cincinnati, OH
- Country
- United States of America (USA)
- Manufacturer / Brand
- Midwest Radio Co., The, (Miraco); Cincinnati, OH
- Year
- 1948
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 47260
-
- Brand: Miraco

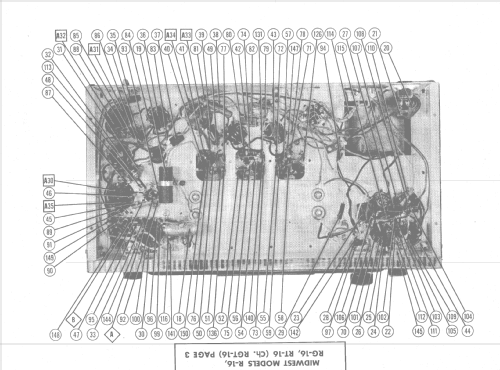

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 16
- Main principle
- Superhet with RF-stage; ZF/IF 456/10700 kHz
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 105 - 125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 11.5 inch = 29.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: R-16 Ch= RGT-16 - Midwest Radio Co., The, Miraco
- Shape
- Console with any shape - in general
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965

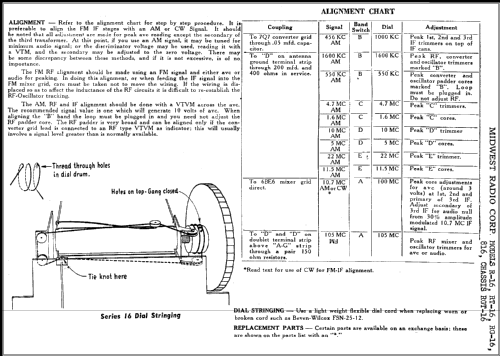

- Circuit diagram reference
- Rider's Perpetual, Volume 18 = 1949 and before
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 45, Folder 16)
