• Country
• United States of America (USA)

• Manufacturer / Brand
• Midwest Radio Co., The, (Miraco); Cincinnati, OH

• Year
• 1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 47275

• • Brand: Miraco

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 24

• Valves / Tubes
• 6K7 6C5 6K7 6K7 6K7 6H6 6K7 6H6 6J7 6C5 6C5 6C5 6C5 6F6 6F6 6F6 6F6 6F6 6F6 6F6 6F6 5Y3 5Y3 5Y3

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz

• Tuned circuits
• 11 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• 3 Loudspeakers

• Power out
• 30 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

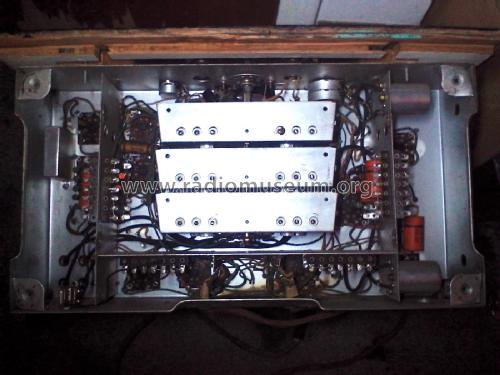

• Model: Royale - Midwest Radio Co., The, Miraco

• Shape
• Console with any shape - in general

• Notes
• 3 Edyn speakers. Two triple circuit IF-filters.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 7 = 1936 and before
