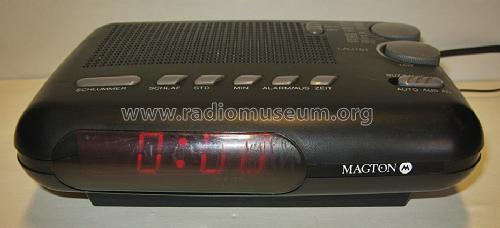

Elektronisches Uhrenradio Magton MG-150
Use red slider bar for more.
UNBEKANNTE FIRMA D /: Elektronisches Uhrenradio Magton MG-150 [Radio] ID = 1665281 933x750
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
Unknown, Custom Built | ||||
|---|---|---|---|---|---|
| Year: 1990 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 3: 2SC9018 2SC9018 2SC9013 TA7613 LM8560 |
| Main principle | Superheterodyne (common); ZF/IF 455/10700 kHz |
|---|---|
| Wave bands | Broadcast (BC) and FM or UHF. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 220 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch |
| Power out | |
| from Radiomuseum.org | Model: Elektronisches Uhrenradio Magton MG-150 - UNBEKANNTE FIRMA D / A / CH - |
| Material | Plastics (no bakelite or catalin) |
| Shape | Tablemodel with Clock ((Alarm-) Clock Radio). |
| Dimensions (WHD) | 174 x 52 x 135 mm / 6.9 x 2 x 5.3 inch |
| Notes |
Weck- Uhrenradio; AM-Empfang über eingebaute Ferritantenne, FM-Empfang über Wurfantenne. |
| Net weight (2.2 lb = 1 kg) | 0.532 kg / 1 lb 2.7 oz (1.172 lb) |
Model page created by Michael Mischke. See "Data change" for further contributors.
