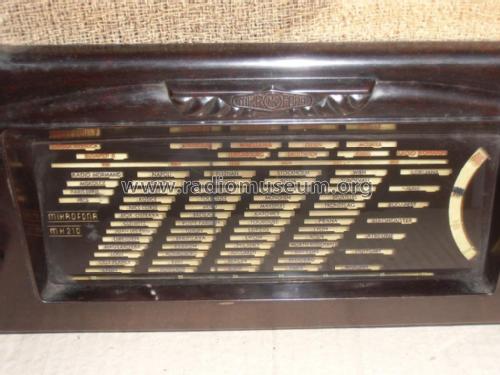

Microphona Mikrofona: Lubina MK210 [Radio] ID = 809195 231x228
Select picture or schematic to display from thumbnails on the right and click for download.
For model Lubina MK210, Microphona (Mikrofona), Bratri Knotkove, Praha-Strasnice:
Detailbild aus nachstehender Werbeschaltung, hochgeladen von Herrn Wolfgang Lill.
|
|
alternative name
|
Telefony Microfona
|
Year:
1938–1940
|
Category: Broadcast Receiver - or past WW2 Tuner |
Valves / Tubes |
3:
EBF2 EL3 AZ1
|
Main principle |
TRF with diode detector; ZF/IF 1 kHz; 2 AF stage(s)
|
Tuned circuits |
2 AM circuit(s) |
Wave bands |
Broadcast, Long Wave and Short Wave. |
Details |
|
Power type and voltage |
Alternating Current supply (AC) / 110-240 Volt |
Loudspeaker |
Permanent or electro-dynamic (moving coil), system not known yet. |
Power out |
|
from Radiomuseum.org |
Model: Lubina MK210 - Microphona Mikrofona, Bratri |
Material |
Bakelite case |
Shape |
Tablemodel, with any shape - general. |
Dimensions (WHD) |
340 x 334 x 230 mm / 13.4 x 13.1 x 9.1 inch |
Price in first year of sale |
1,035.00 CSK |
External source of data |
Erb |
Source of data |
Ceskoslovenske prijimace 1933-1945, Baudys 1947 |
