- Country
- Czechoslovakia
- Manufacturer / Brand
- Microphona (Mikrofona), Bratri Knotkove, Praha-Strasnice
- Year
- 1936/1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 23096
-
- alternative name: Telefony Microfona
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- TRF with regeneration; 1 AF stage(s)
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 120-220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org

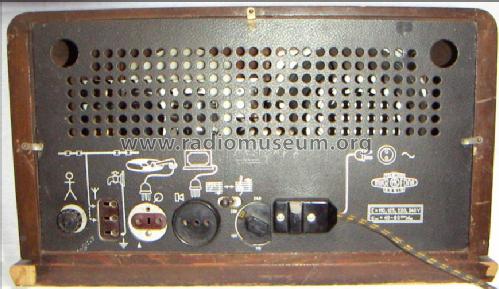

- Model: Panfon MK207 - Microphona Mikrofona, Bratri
- Dimensions (WHD)
- 468 x 260 x 232 mm / 18.4 x 10.2 x 9.1 inch
- Notes
- 36W Verbrauch
- Price in first year of sale
- 837.00 Kc
- External source of data
- Erb
- Source of data
- Ceskoslovenske prijimace 1933-1945, Baudys 1947
