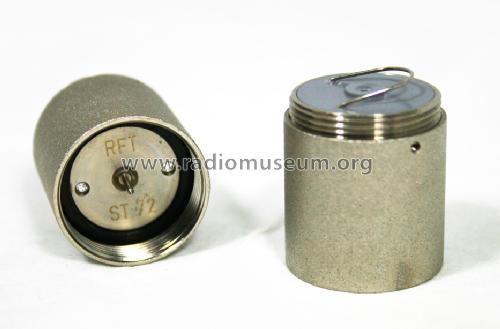

Dämpfungsglied ST72 SMS 70

Mikrofontechnik Gefell, VEB; Gefell (Ostd.)

  • Year
  • 1975 ??
  • Category
  • Miscellaneous (Other, Various) - see notes
  • Radiomuseum.org ID
  • 172149
    • alternative name: Microtech Gefell GmbH

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Dämpfungsglied ST72 [SMS 70] - Mikrofontechnik Gefell, VEB;
  • Shape
  • Miscellaneous shapes - described under notes.
  • Dimensions (WHD)
  • 25 x 25 x 24 mm / 1 x 1 x 0.9 inch
  • Notes
  • Dämpfungsglied für das Studiomikrofonsystem SMS 70.
    Als Adapter zwischen Kondensatormikrofonkapsel und Mikrofonvorverstärker realisiert es eine (Vor-) Dämpfung von ca. 20 dB inkl. einer Verringerung des Fremdspannungspegels um 3 dB.
    Dieses Modell wurde im Vorgängerbetrieb Georg Neumann & Co. Gefell entwickelt und auch dort anfangs gefertigt.
  • Net weight (2.2 lb = 1 kg)
  • 0.035 kg / 0 lb 1.2 oz (0.077 lb)
  • Author
  • Model page created by Frithjof Grassmann. See "Data change" for further contributors.
