• Country
• Great Britain (UK)

• Manufacturer / Brand
• MILITARY U.K. (different makers for same model)

• Year
• 1920 ??

• Category
• Military Transceiver (TRX)

• Radiomuseum.org ID
• 305552

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• TM

• Power type and voltage
• 6/10 ;300/400 Volt

• Material
• Wooden case

• from Radiomuseum.org
• Model: Transmitter Receiver C.W. Type A - MILITARY U.K. different makers

• Dimensions (WHD)
• 370 x 200 x 340 mm / 14.6 x 7.9 x 13.4 inch

• Notes

• Battery or external power supply.

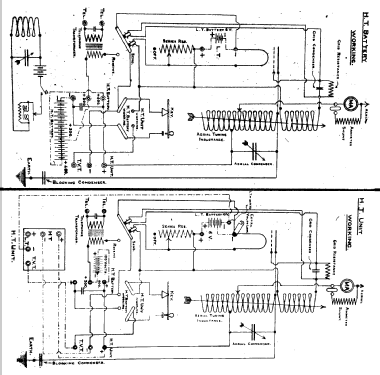

  (H.T. Battery working) or (H.T. Unit working)
  1 tube on stand in reserve



  (Alimentation par batterie ou par alimentation externe. (H.T. Battery working) ou (H.T. Unit working) 1 tube sur socle en réserve)





• Net weight (2.2 lb = 1 kg)
• 7.7 kg / 16 lb 15.4 oz (16.96 lb)

• Author
• Model page created by Musée des Radios Museum. See "Data change" for further contributors.
