Control Box for ARC-3 VHF Radio C-118/ARC-3

Control Box for ARC-3 VHF Radio C-118/ARC-3; MILITARY U.S. (ID = 1228833) Military
Control Box for ARC-3 VHF Radio C-118/ARC-3; MILITARY U.S. (ID = 1228831) Military Control Box for ARC-3 VHF Radio C-118/ARC-3; MILITARY U.S. (ID = 1228832) Military
Use red slider bar for more.
Control Box for ARC-3 VHF Radio C-118/ARC-3; MILITARY U.S. (ID = 1228831) Military
MILITARY U.S.: Control Box for ARC-3 VHF Radio C-118/ARC-3 [Military] ID = 1228831 933x617
Select picture or schematic to display from thumbnails on the right and click for download.
For model Control Box for ARC-3 VHF Radio C-118/ARC-3, MILITARY U.S. (different makers for same model):
source: Maintenance Instructions AN 16-30 ARC3-2

Country:  United States of America (USA)
Manufacturer / Brand:  MILITARY U.S. (different makers for same model)
Year: 1945 ? Category: Military Equipment (not Re, Tr or RXT)
Wave bands - without
Details
Power type and voltage Powered by external power supply or a main unit. / 28 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Control Box for ARC-3 VHF Radio C-118/ARC-3 - MILITARY U.S. different makers
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 6 x 2.7 x 7 inch / 152 x 69 x 178 mm
Notes Early Control Panel for AN/ARC-3 VHF Radio.

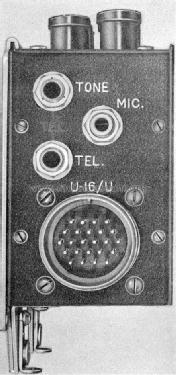

The unit is mounted in the aircraft on a seperate plate FT-240-A. On the front panel arranged in 2 staggered rows are eight red pushbuttons to select one of 8 channels and a black button as the OFF switch. On the bottom end of the metal case are the jacks for microphone and headset plugs and the TONE button. For volume control of the headset audio, an extra Control Unit C-197/ARC-3 ist required.

Net weight (2.2 lb = 1 kg) 2.1 lb (2 lb 1.6 oz) / 0.953 kg
Mentioned in -- Original-techn. papers. (AN 16-30 ARC3-2)

Model page created by Franz Harder. See "Data change" for further contributors.
