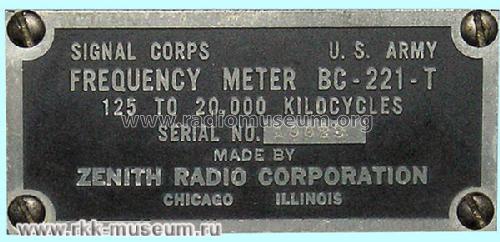

For model SCR-211-T Frequency Meter Set (BC-221-T), Zenith Radio Corp.; Chicago, IL:
to see in Bletchley Park.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1943 Category: Service- or Lab Equipment
Valves / Tubes 3: VT-116B VT-116 or VT-116B VT-167
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Dry Batteries / 135/6 Volt
Loudspeaker - only for Earphone!
Power out
from Radiomuseum.org Model: SCR-211-T Frequency Meter Set - Zenith Radio Corp.; Chicago,
Material Metal case
Shape Boatanchor (heavy military or commercial set >20 kg).
Dimensions (WHD) 10 x 13.7 x 9.25 inch / 254 x 348 x 235 mm

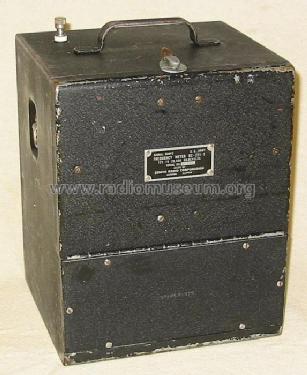

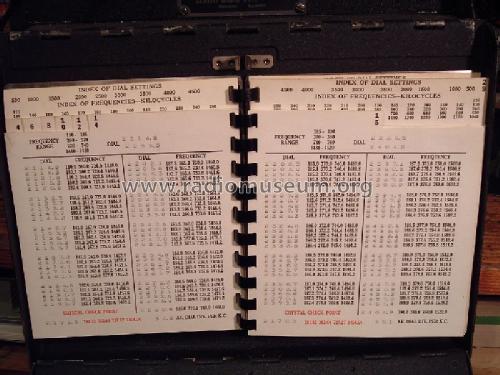

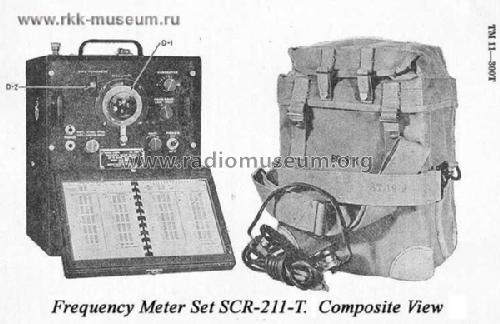

Notes Precision heterodyne frequency meter designed to measure or radiate radio-frequency impulses between 125 kHz and 20 MHz. Portable, self-contained, used mainly to calibrate field radio receivers and transmitters by direct comparison with the crystal-calibrated variable frequency oscillator of the instrument. Frequency readings provided by a calibration book. Contained 1 MHz crystal oscillator and variable frequency oscillator operating in two switched ranges: 125 to 250 kHz and 2 to 4 MHz. The 2nd, 4th and 8th harmonics of the low-frequency range were used to cover 250 kHz to 2 MHz, while the 2nd, 4th and 5th harmonics of the high-frequency range were used to cover 4 MHz to 20 MHz. Supplied with aluminum-alloy cabinet. Required six BA-2 batteries (22.5V each), four BA-23 batteries (1.5V each) and P-18 or P-20 headset. Tube VT-116-B sometimes substituted for VT-116. Electrically and mechanically exactly alike model BC-221-P and very similar to models BC-221-AF and -AH.
Net weight (2.2 lb = 1 kg) 42.3 lb (42 lb 4.8 oz) / 19.204 kg

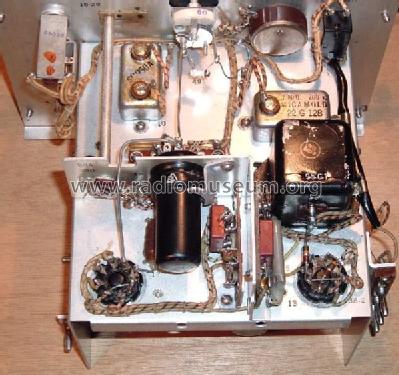

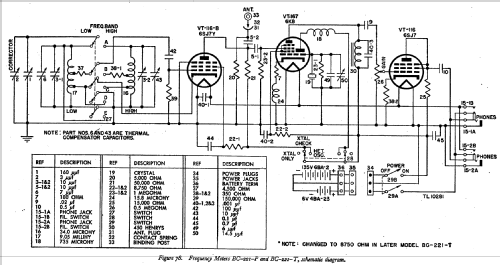

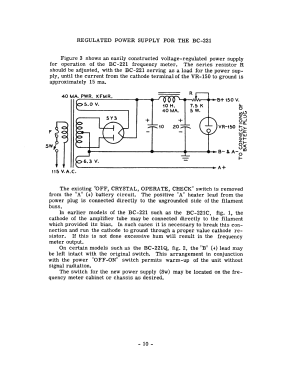

Literature/Schematics (1) -- Original-techn. papers. (TM 11-300 (20 July 1944))

Model page created by Emilio Ciardiello. See "Data change" for further contributors.
