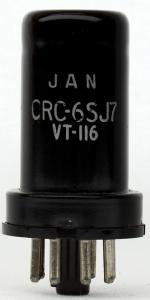

VT-116

Information - Help
ID = 10423

Country:
United States of America (USA)
Brand: Common type USA tube/semicond.
Tube type:  Vacuum Pentode   RF/IF-Stage
Identical to VT-116 = 6SJ7 = CV591
Similar Tubes
Normally replaceable-slightly different:
  CV866

Base Octal (Int.Octal, IO) K8A, USA 1935 (Codex=Uka)
Was used by Military and/or Government
Filament Vf 6.3 Volts / If 0.3 Ampere / Indirect / Parallel / series AC/DC
Literature Taschenbuch zum Röhren-Codex 1948/49

VT-116: My tubes
Anonymous 413 Collector


VT-116: W.Sprick: Austausch-Röhren-Lexikon 1947
Günther Stabe



Usage in Models 3= 1941?? ; 1= 1941 ; 1= 1942?? ; 1= 1942? ; 4= 1942 ; 1= 1943?? ; 7= 1943 ; 1= 1944

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):19
