• Country
• United States of America (USA)

• Manufacturer / Brand
• MILITARY U.S. (different makers for same model)

• Year
• 1941 ??

• Category
• Military Receiver

• Radiomuseum.org ID
• 280933

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Superhet with RF-stage

• Wave bands
• Short Wave (SW only)

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Radio Receiver TCS-8 CWS-46159 - MILITARY U.S. different makers

• Shape
• Boatanchor (heavy military or commercial set >20 kg).

• Notes

• Shortwave receiver covering 1,5-12 MHz in three bands (1,5-3 / 3-6 / 6-12 MHz), AM, CW.

  Different power supplies to operate the set from 12V / 24V DC, 115/230V DC and 115/230V AC.

  See also TCS (*)-46159-(*)

• Mentioned in

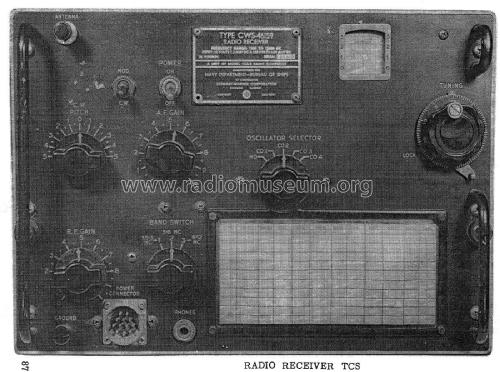

• The Surplus Handbook - Receivers and Transmitters (page 87-88)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
