Receiver TCS (*)-46159-(*)

Receiver TCS; MILITARY U.S. (ID = 774278) Receiver-C
Receiver TCS; MILITARY U.S. (ID = 766111) Receiver-C Receiver TCS; MILITARY U.S. (ID = 380711) Receiver-C
Receiver TCS; MILITARY U.S. (ID = 380712) Receiver-C Receiver TCS; MILITARY U.S. (ID = 766112) Receiver-C
Receiver TCS; MILITARY U.S. (ID = 766114) Receiver-C Receiver TCS; MILITARY U.S. (ID = 1024474) Receiver-C

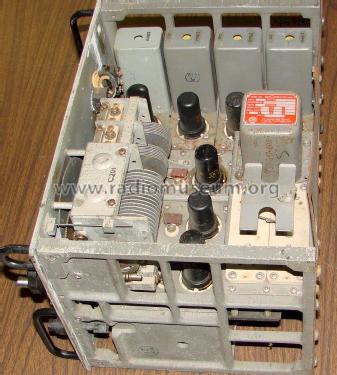

Receiver TCS; MILITARY U.S. (ID = 1024476) Receiver-C Receiver TCS; MILITARY U.S. (ID = 1024477) Receiver-C
Receiver TCS; MILITARY U.S. (ID = 1024478) Receiver-C
Use red slider bar for more.
Receiver TCS; MILITARY U.S. (ID = 766111) Receiver-C

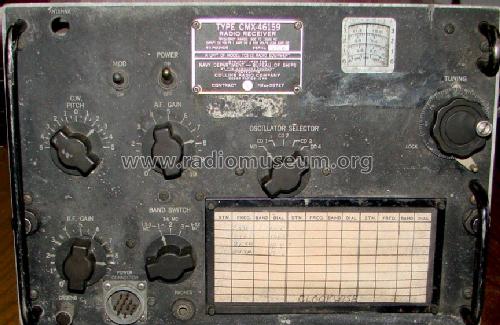

MILITARY U.S.: Receiver TCS [Receiver-C] ID = 766111 933x713
Select picture or schematic to display from thumbnails on the right and click for download.
For model Receiver TCS (*)-46159-(*), MILITARY U.S. (different makers for same model):

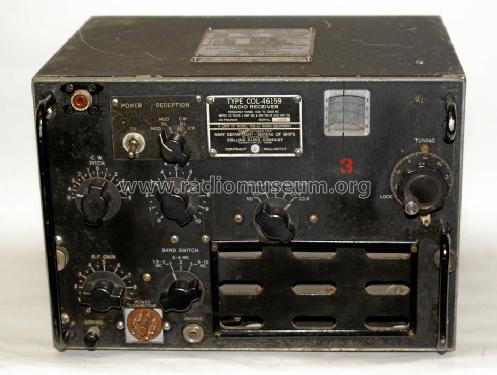

Empfänger der Funkstation TCS, hier die von Collins hergestellte Variante COL-46159

Country:  United States of America (USA)
Manufacturer / Brand:  MILITARY U.S. (different makers for same model)
Year: 1943 Category: Commercial Receiver (may include amateur bands)
Valves / Tubes 7: 12SK7 12SA7 12A6 12SK7 12SK7 12SQ7 12A6
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Wave bands Short Wave (SW only)
Details
Power type and voltage Other, details in remarks or not known.
Loudspeaker - For headphones or amp.
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Receiver TCS [-46159-] - MILITARY U.S. different makers
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 13.75 x 11.75 x 11.87 inch / 349 x 298 x 301 mm
Notes Shortwave receiver covering 1,5-12 MHz in three bands (1,5-3 / 3-6 / 6-12 MHz), AM, CW.
Part of TCS radio equipment, originally designed by Collins and produced by different companies under contract, a common WWII radio equipment for small vessels / boats.
Different power supplies to operate the set from 12V / 24V DC, 115/230V DC and 115/230V AC.
Net weight (2.2 lb = 1 kg) 16.7 kg / 36 lb 12.5 oz (36.784 lb)
Collectors' prices
Source of data -- Original-techn. papers.

Model page created by Martin Bösch. See "Data change" for further contributors.



All listed radios etc. from MILITARY U.S. (different makers for same model)
Here you find 339 models, 292 with images and 165 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
MILITARY U.S.: Receiver TCS
Threads: 2 | Posts: 2
Hits: 1400     Replies: 0
military: TCS; Receiver
Martin Bösch
26.Oct.12
  1

According to informations in the "Armyradio" maillist, the British designation for this receiver is R1543A, thanks to Chris Story

Kind regards mb


Hits: 1764     Replies: 0
military: TCS Receiver contractors
Martin Bösch
05.Nov.07
  1 Different contractors / manufacturers:
Receiver TCS-10 Manufacturer Identification additional information
  Collins COL-46159 original Collins model 51Q
  Collins CMX-46159 assembled by Magnavox
  Air King Products Inc. CKP-46159-A
  Hamilton Radio Corp., N.Y. CIH-46159-A
