• Country
• United States of America (USA)

• Manufacturer / Brand
• MILITARY U.S. (different makers for same model)

• Year
• 1950 ??

• Category
• Military transmitter

• Radiomuseum.org ID
• 124671

• Number of Tubes
• 9

• Valves / Tubes
• 6AG7 2E26 4-65A 6Y6G VR105 VR150 5R4GY 816 816

• Main principle
• Transmitter

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

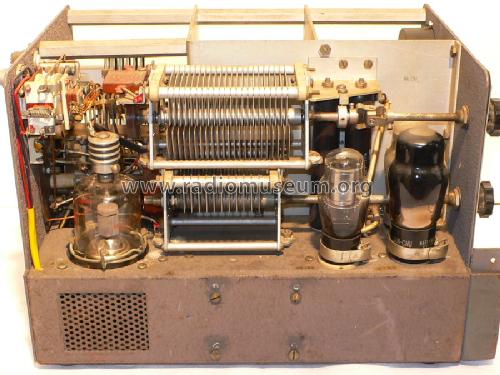

• Model: Radio-Transmitter RT-1 - MILITARY U.S. different makers

• Shape
• Boatanchor (heavy military or commercial set >20 kg).

• Dimensions (WHD)
• 250 x 240 x 370 mm / 9.8 x 9.4 x 14.6 inch

• Notes
• The RT-1 is a CW transmitter that covers 3 to 30 MC in five bands, and operates from 115 VAC 50-400 cycle power.

• Net weight (2.2 lb = 1 kg)
• 12.2 kg / 26 lb 14 oz (26.872 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
