Test Oscilloscope TS-100/AP

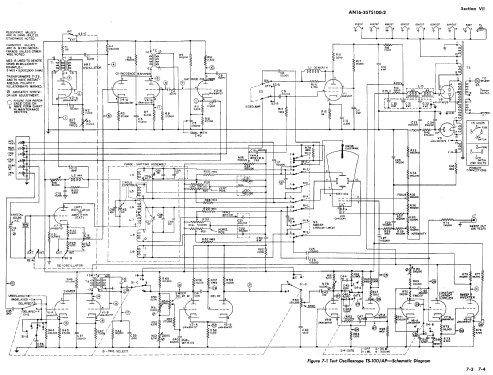

Test Oscilloscope TS-100/AP; MILITARY U.S. (ID = 431562) Equipment

Test Oscilloscope TS-100/AP; MILITARY U.S. (ID = 431566) Equipment

Test Oscilloscope TS-100/AP; MILITARY U.S. (ID = 431568) Equipment
Test Oscilloscope TS-100/AP; MILITARY U.S. (ID = 425478) Equipment Test Oscilloscope TS-100/AP; MILITARY U.S. (ID = 425542) Equipment
Test Oscilloscope TS-100/AP; MILITARY U.S. (ID = 425566) Equipment
Use red slider bar for more.
Test Oscilloscope TS-100/AP; MILITARY U.S. (ID = 425478) Equipment
MILITARY U.S.: Test Oscilloscope TS-100/AP [Equipment] ID = 425478 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Test Oscilloscope TS-100/AP, MILITARY U.S. (different makers for same model):
Frontseite

Country:  United States of America (USA)
Manufacturer / Brand:  MILITARY U.S. (different makers for same model)
Year: 1944 Category: Service- or Lab Equipment
Valves / Tubes 11: 6AG7 6SN7 6SN7 6SN7 6SN7 6SN7 6SN7 6SN7 5Y3 2X2 3DP1
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Test Oscilloscope TS-100/AP - MILITARY U.S. different makers
Material Metal case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 200 x 320 x 370 mm / 7.9 x 12.6 x 14.6 inch
Notes Mehrzweckgerät, umschaltbar als Normal- oder Polarkoordinaten-Oszilloskop für den NF-Bereich. Made by United Cinephone Corporation.
Net weight (2.2 lb = 1 kg) 16.5 kg / 36 lb 5.5 oz (36.344 lb)
Source of data - - Data from my own collection
Mentioned in -- Original-techn. papers.

Model page created by Peter Gruschka. See "Data change" for further contributors.
