• Country
• United States of America (USA)

• Manufacturer / Brand
• MILITARY U.S. (different makers for same model)

• Year
• 1961 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 132632

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 83 6X4W 6X4W

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

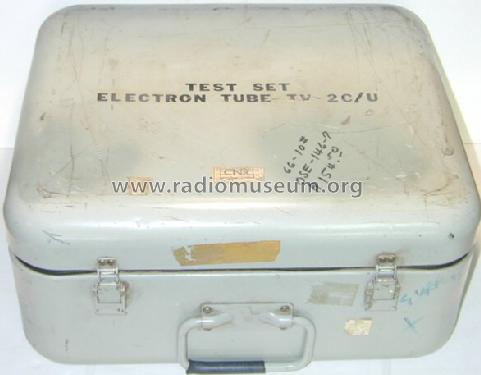

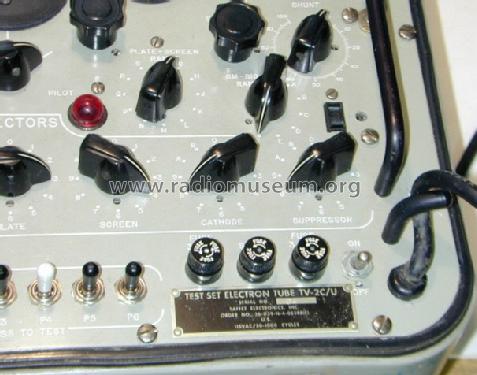

• Model: Test Set Electron Tube TV-2C/U - MILITARY U.S. different makers

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 18 x 9 x 16 inch / 457 x 229 x 406 mm

• Notes

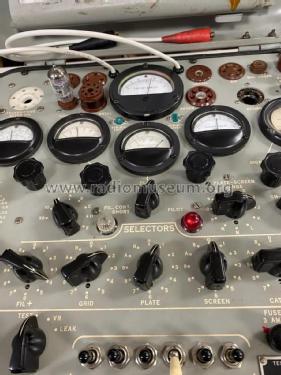

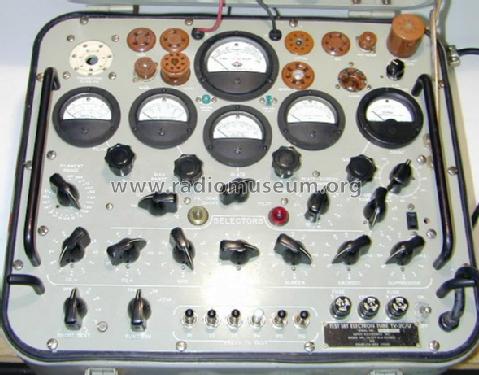

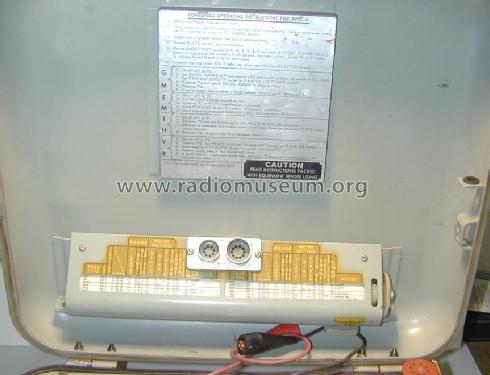

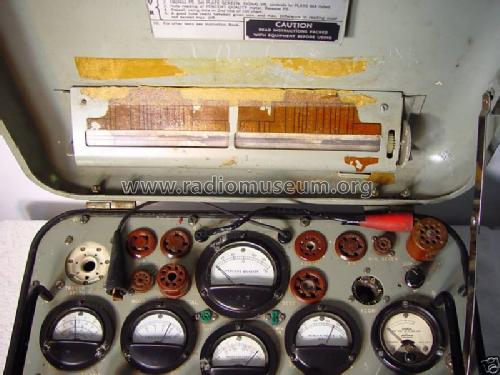

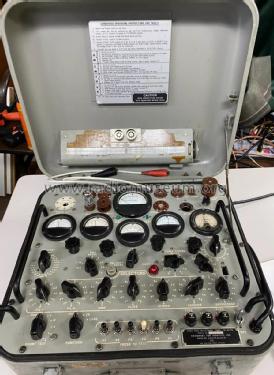

• TV2C/U Tube Tester. Features 6 meters.

• Net weight (2.2 lb = 1 kg)
• 18 kg / 39 lb 10.4 oz (39.648 lb)

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
