TV-7 C/U; MILITARY U.S. (ID = 950721) Equipment
MILITARY U.S.: TV-7 C/U [Equipment] ID = 950721 900x894
Select picture or schematic to display from thumbnails on the right and click for download.
For model TV-7 C/U, MILITARY U.S. (different makers for same model)

Country:  United States of America (USA)
Manufacturer / Brand:  MILITARY U.S. (different makers for same model)
Year: 1953 ? Category: Service- or Lab Equipment
Valves / Tubes 2: 83 5Y3GT
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: TV-7 C/U - MILITARY U.S. different makers
Material Metal case
Dimensions (WHD) 440 x 220 x 155 mm / 17.3 x 8.7 x 6.1 inch
Notes Tube tester. This model C/U was built by Stark in Canada. It includes an additional adapter (Stark ED) with 4 tube sockets: British 9-pin, Mazda Octal, Europe 4-/5-Pin, British 7-Pin
External source of data Ralf Sürtenich

Model page created by Ralf Sürtenich. See "Data change" for further contributors.



All listed radios etc. from MILITARY U.S. (different makers for same model)
Here you find 352 models, 304 with images and 168 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
MILITARY U.S.: TV-7 C/U
Threads: 1 | Posts: 1
Hits: 1771     Replies: 0
military: TV-7 C/U;
Ralf Sürtenich
09.Apr.04

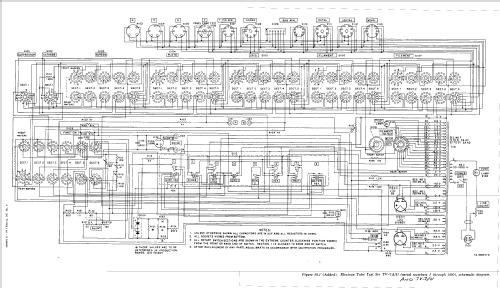

  1 Circuit of TV-7 C/U is similar to TV-7 A/U, except of the Stark ED-adapter.
