1386

1386; Minerva Ital-Minerva (ID = 38148) Radio
1386; Minerva Ital-Minerva (ID = 1196294) Radio
Use red slider bar for more.
1386; Minerva Ital-Minerva (ID = 1196294) Radio

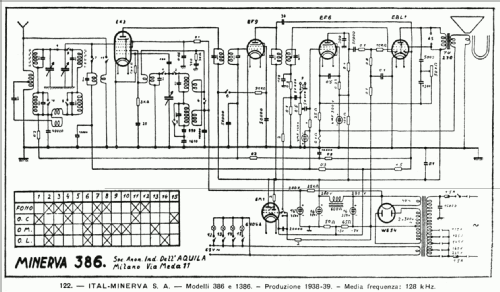

Minerva Ital-Minerva: 1386 [Radio] ID = 1196294 600x1011
Select picture or schematic to display from thumbnails on the right and click for download.
For model 1386, Minerva (Ital-Minerva); Milano

Country:  Italy
Manufacturer / Brand:  Minerva (Ital-Minerva); Milano
alternative name

Cozzi Luigi Dell'Aquila
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: EK2 EF9 EF6 EBL1 WE54 EM1
Main principle Superheterodyne (common); ZF/IF 128 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: 1386 - Minerva Ital-Minerva; Milano
Material Wooden case
Shape Console: Chairside Radio.
Notes Meter (EM1)
Source of data Guida Pratica Antique Radio IV (2001)
Literature/Schematics (1) Il Radio Libro (E.D. Ravalico) Edizioni Hoepli

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Minerva (Ital-Minerva); Milano
Here you find 231 models, 188 with images and 127 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
