20W; Minerva-Radio (ID = 2352313) Radio

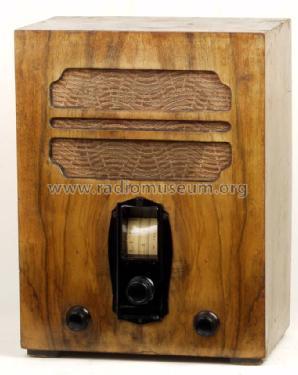

Minerva-Radio: 20W [Radio] ID = 2352313 680x854
Select picture or schematic to display from thumbnails on the right and click for download.
For model 20W, Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien

Country:  Austria
Manufacturer / Brand:  Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Year: 1933/1933 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: E499 C443 506
Main principle TRF without regeneration
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20.5 cm = 8.1 inch
Power out
from Radiomuseum.org Model: 20W - Minerva-Radio Radiola-
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 310 x 410 x 210 mm / 12.2 x 16.1 x 8.3 inch
Notes Eingebaute Wellenfalle
Price in first year of sale 228.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Schenk-Regelien


All listed radios etc. from Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
Here you find 627 models, 557 with images and 446 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Minerva-Radio: 20W
Threads: 1 | Posts: 1
Hits: 1494     Replies: 0
minerva: 20
Gerhard Heigl
09.Oct.02
  1 orig.Preis 228 S
